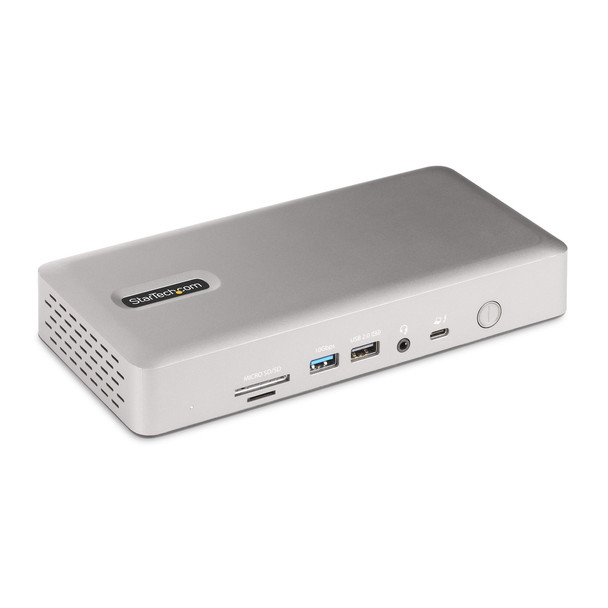

Startech Thunderbolt 4 Multi-Display Dock 7x USB 132UE-TB4USB4DOCK

Transform a Thunderbolt 4 laptop into a high-resolution multi-monitor workstation with 7x USB ports, 2.5 Gigabit Ethernet port, 3.5mm audio, plus USB Power Delivery and downstream device chargingThis Thunderbolt 4 Certified docking station uses a single Thunderbolt 3, Thunderbolt 4, USB4, or USB Type-C port on a host computer to add high-performance connectivity while charging the laptop. For rapid deployment, the dock includes a 3.3ft. (1m) Thunderbolt 4 cable that connects to the front-facing USB-C host port, and features two sizes of Kensington-style security slots.Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60HzThe dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports.Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor, as well as iPad Pros with M1 or later processors, a single display is supported.Port ConnectivityThe docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.The dock features:� 2x HDMI ports to connect displays� 2x DisplayPort ports to connect displays� 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices� 1x USB 3.2 Gen 2 (10Gbps) Type-C ports to connect USB peripheral devices� 2x USB 3.2 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices� 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices� 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)� 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards� 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards� 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset98W USB Power Delivery CertifiedThe Thunderbolt 4 docking station includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.Thunderbolt CertifiedThis certification ensures the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1/M2/M3 Pro/Max MacBooks.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�Advanced Windows Layout Utility : To setup and save custom windows layouts.�Mac Address Pass-Through Utility : To improve network security.�USB Event Monitoring Utility : To track and log connected USB devices�Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe StarTech.com Advantage

Features


HIGH-PERFORMANCE THUNDERBOLT 4 DOCK: Easy driverless setup; 2x DisplayPort; 2x HDMI; 7-Port USB Hub (3x USB-A 10Gbps/1x USB-C 10Gbps/2x USB-A 5Gbps/1x USB 2.0); SD & mSD card readers; 2.5GbE; Lock slots (k-slots); 3.5mm Headset jack


MULTI-MONITOR FLEXIBILITY: Supports up to quad 4K 60Hz with Intel 12th Gen CPU (or higher) supporting DP 1.4 with DSC; Quad displays at lower resolutions or refresh-rates without DSC or with Intel 11th gen CPU (or lower); Single HDMI display up to 8K 60Hz


COMPATIBILITY: Supports Windows, macOS & Ubuntu; Works with all Thunderbolt 4/3 and USB4 laptops; Quad display on Windows laptops; Dual display on MacBook Pro (Apple M1/M2/M3 Max & Pro); Single display on MacBook Air & iPad Pro M1 (and later)


98W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices


IT PRO ADVANTAGES: Includes 3.3ft/1m TB4 host cable; Mounting holes for optional brackets (SSPMSVESA/SSPMSUDWM); K-Slots for lock; Connectivity Tools software w/MAC Address Pass-Through, USB Event Monitoring, WiFi Auto Switching & Windows Layout utilities



Weight & dimensions


Height

34 mm


Width

210 mm


Depth

96 mm


Weight

200 g



Packaging content


Cables included

Thunderbolt


Quick start guide

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

380 mm


Master (outer) case height

285 mm


Products per master (outer) case

4 pc(s)


Master (outer) case length

310 mm



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Network


Copper ethernet cabling technology

2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Ethernet LAN data rates

10,100,1000,2500 Mbit/s



Other features


Chipset

Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546



Software


Mac operating systems supported

Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 95


Storage temperature (T-T)

-20 - 70 �C



Ports & interfaces


USB Power Delivery

Yes


USB Power Delivery revision

3.0


Host interface

Thunderbolt 4


DisplayPort version

1.4


Headphone outputs

1


DisplayPorts quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-A ports quantity

3


USB Power Delivery up to

98 W


Connectivity technology

Wired


HDMI ports quantity

2


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

2


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

1


HDMI version

2.1


DC-in jack

Yes


Combo headphone/mic port

Yes


USB 2?0 ports quantity

1


Headphone connectivity

3.5 mm



Performance


Cable lock slot

Yes


Maximum digital resolution

7680 x 4320 pixels


Maximum refresh rate

60 Hz


Product colour

Grey


Card reader integrated

Yes


On/off switch

Yes


LED indicators

LAN, Power


UASP support

Yes


Data transfer rate

40 Gbit/s


Cable lock slot type

Kensington, Nano


Compatible memory cards

MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC


Housing material

Aluminium


HD type

8K Ultra HD



Power


AC input voltage

110 - 240 V


Output voltage

20 V


Input current

2.5 A


Power source type

DC


Compatible power plug types

EU, UK


Output current

9 A


Power consumption (max)

180 W



Packaging data


Package height

90 mm


Package depth

145 mm


Package width

235 mm


Package weight

1.4 kg
