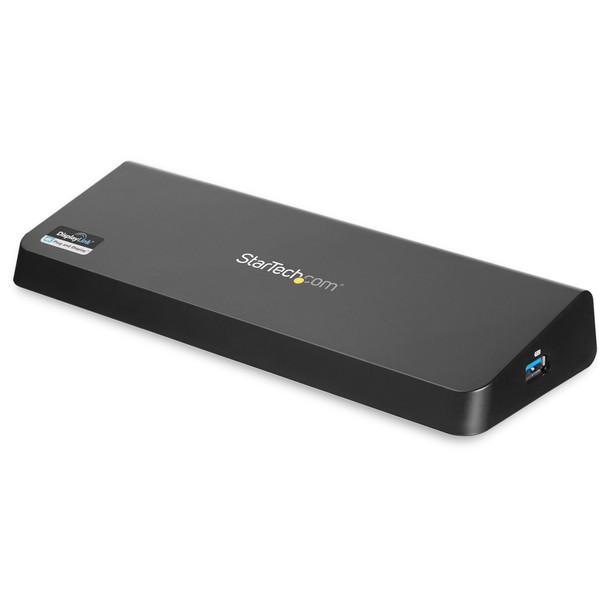

Startech USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3 USB3DOCKHDPC

Laptop Docking Station | Mac & Windows | USB Fast Charge Port | 4 USB Ports | TAA Compliant

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD?Resolutions?

This?4K USB docking station?supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge?

The?USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2?making it easy to charge your?tablets and other?mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use?

This?docking station with DisplayPort?and HDMI?is universally compatible, working?with Mac and Windows?USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.??

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

- FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock
- FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p)
- USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks

Features


FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock_x000D_


FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p)_x000D_


USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks_x000D_


WIDE OPERATING SYSTEM COMPATIBILITY: This universal laptop docking station fully supports major operating systems like Windows, macOS, and ChromeOS_x000D_


PLENTY OF USB PORTS: This USB 3.0 port replicator has a 4-port downstream USB-A hub (5Gbps SuperSpeed) including one always-on BC 1.2 (1.5A) fast-charge port that can charge without a connected host_x000D_


_x000D_



Weight & dimensions


Height

24 mm


Width

76 mm


Depth

227 mm


Weight

277 g



Packaging content


Cables included

AC, USB


Manual

Yes


Drivers included

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

390 mm


Master (outer) case height

302 mm


Products per master (outer) case

10 pc(s)


Products per shipping (inner) case

150 pc(s)


Master (outer) case length

426 mm


Harmonized System (HS) code

84733020



Sustainability


Sustainability certificates

RoHS



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


USB data transfer rates

5000 Mbit/s


Chipset

DisplayLink - DL-5900, VLI - VL812


Cable length

0.6 m



Software


Mac compatibility

Yes


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 90


Storage temperature (T-T)

-10 - 80 �C



Ports & interfaces


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

4


USB connector type

USB Type-A


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-B


Headphone outputs

1


DisplayPorts quantity

1


Connectivity technology

Wired


Headphone connectivity

3.5 mm



Performance


Data transfer rate

5 Gbit/s


Cable lock slot

Yes


Maximum digital resolution

3840 x 2160 pixels


Charging function

Yes


Product colour

Black


Card reader integrated

No


Housing material

Plastic, Steel


Brand compatibility

Any brand


Certification

CE, FCC, DisplayLink


LED indicators

Activity, Link


UASP support

Yes



Power


AC input voltage

100-240 V


Output voltage

5 V


Power consumption (typical)

32.5 W


Input current

1.5 A


Compatible power plug types

AU, EU, UK, US


Output current

6.5 A



Packaging data


Package height

71 mm


Package depth

198 mm


Package width

251 mm


Package weight

1.1 kg
