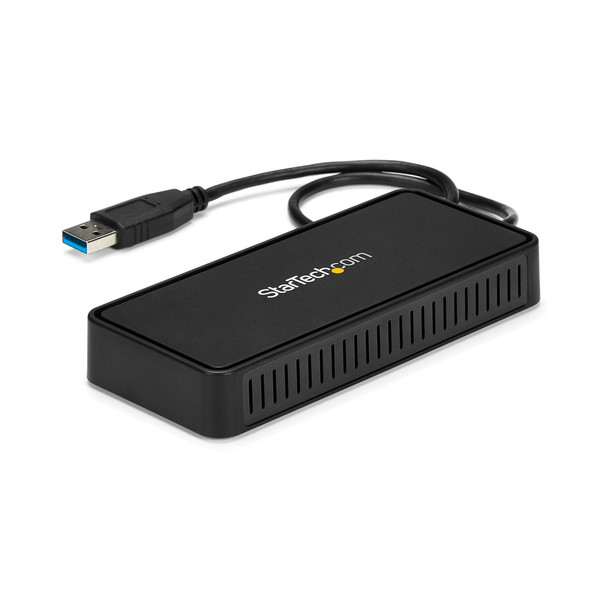

Startech USB 3.0 Mini Dock - Dual Monitor USB-A Docking Station with DisplayPort USBA2DPGB

Portable Docking Station | USB 3.0 | Mac & Windows | TAA Compliant

This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

Increase Your Productivity with Two 4K Monitors

The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.

Access Hardwired Networks with a GbE Port

Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn't have an Ethernet port.

Maximize Portability with a Miniature Docking Station

The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.

The USBA2DPGB is TAA compliant and backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- USB-A DUAL 4K 60HZ MINI DOCK: USB 3.0 mini dock with dual monitor DisplayPort, GbE port; DisplayLink certified, DL 6950 chipset supports dual DP 4K 60Hz video output & widespread display compatibility
- EASY INSTALLATION: Portable USB Type-A docking station with a 1ft (30cm) attached cable to provide setup flexibility & extended port reach to devices like USB-A Surface Pros to reduce port strain
- DESIGNED FOR PORTABILITY: This bus-powered USB-A mini docking station has a compact form factor and it is ideally suited for small in-office or work-from-home workspaces

Features


USB-A DUAL 4K 60HZ MINI DOCK: USB 3.0 mini dock with dual monitor DisplayPort, GbE port; DisplayLink certified, DL 6950 chipset supports dual DP 4K 60Hz video output & widespread display compatibility


EASY INSTALLATION: Portable USB Type-A docking station with a 1ft (30cm) attached cable to provide setup flexibility & extended port reach to devices like USB-A Surface Pros to reduce port strain


DESIGNED FOR PORTABILITY: This bus-powered USB-A mini docking station has a compact form factor and it is ideally suited for small in-office or work-from-home workspaces


WIDE DEVICE COMPATIBILITY: This mini dock is compatible with wide range of USB-A laptops, ultrabooks, chromebooks and Surface Pros


EASY TO SETUP AND DEPLOY: This USB-A (USB 3.0/USB 3.1 Gen 1) multiport adapter hub features automatic driver setup and supports multiple OS platforms including Windows & Chrome OS



Weight & dimensions


Height

20 mm


Width

58 mm


Depth

130 mm


Weight

126 g



Packaging content


Quick start guide

Yes



Logistics data


Master (outer) case width

220 mm


Master (outer) case height

255 mm


Products per master (outer) case

20 pc(s)


Master (outer) case length

415 mm


Harmonized System (HS) code

84733020



Sustainability


Sustainability certificates

RoHS



Network


Wake-on-LAN ready

Yes


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Chipset

DisplayLink - DL-6950


Cable length

0.14 m



Software


Mac compatibility

Yes


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90


Storage temperature (T-T)

-10 - 60 �C



Ports & interfaces


Microphone in

No


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-A


DisplayPorts quantity

2


Connectivity technology

Wired



Performance


Data transfer rate

5 Gbit/s


Maximum digital resolution

4096 x 2160 pixels


Product colour

Black


Card reader integrated

No


Brand compatibility

Any brand


Number of displays supported

2


Certification

CE, FCC, TAA


UASP support

No



Power


Power source type

USB



Packaging data


Package height

38 mm


Package depth

114 mm


Package width

200 mm


Package weight

215 g
