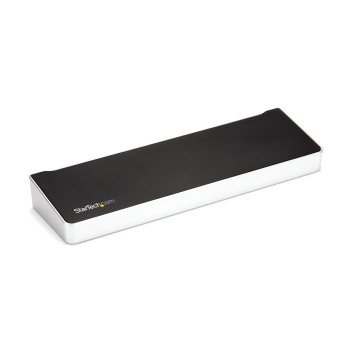

Startech USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual Display DK30CH2DEPUE

Laptop Docking Station | Mac, Windows� & ChromeOS� | 2x 4K 60Hz DP + HDMIThis triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.Enhance ProductivityThe 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:� 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and� 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30HzFor high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.100W Power DeliveryUsing a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.Powerful ConnectionsThis triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:�Advanced Windows Layout Utility : To setup and save custom windows layouts.�Mac Address Pass-Through Utility : To improve network security.�USB Event Monitoring Utility : To track and log connected USB devices�Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Features


FLEXIBLE MONITOR OUTPUTS: USB-C dock supports dual or triple 4K monitor setups w/ up to dual 4K 60Hz on DisplayPort (DP++/DP) and up to 4K 30Hz on HDMI; Supports up to 3 extended displays on Macbook Pro/Air with Intel processor or Apple M1/M2 chip


100W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops & Ultrabooks incl. Lenovo X1, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook & MacBook Pro 16


FULL FEATURE DOCK: USB-C Dock w/ 3 video outputs (DP & HDMI), 100W PD, 4x USB-A & 1x USB-C, gigabit ethernet, headset port, separate speaker/mic audio ports, K-Slot for security & 1m/3.3' USB-C cable


MORE USB DEVICE PORTS: USB 3.1 Gen 1 Docking Station has 5x USB 3.0 5Gbps Hub (4x USB-A, 1x USB-C), w/ 1x BC 1.2 (1.5A) fast charge always-on smartphone port, with or without laptop connection to dock


EASY DEPLOYMENT: This universal USB Type-C port replicator supports Windows, macOS, ChromeOS & Ubuntu and includes DisplayLink update utilities for hassle-free IT management


CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities



Weight & dimensions


Height

34 mm


Width

82 mm


Depth

270 mm


Weight

382 g



Packaging content


Cables included

USB Type-C


Manual

Yes


AC adapter included

Yes



Logistics data


Master (outer) case width

365 mm


Master (outer) case height

370 mm


Products per master (outer) case

8 pc(s)


Master (outer) case length

370 mm


Harmonized System (HS) code

84733020



Sustainability


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Ethernet LAN

Yes


Full duplex

Yes


Ethernet LAN (RJ-45) ports

1


Auto MDI/MDI-X

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Other features


Chipset

DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176



Software


Mac compatibility

Yes


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

0 - 70


Storage temperature (T-T)

-20 - 60 �C



Ports & interfaces


USB Power Delivery

Yes


Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C


Headphone outputs

2


DisplayPorts quantity

2


USB Power Delivery up to

100 W


Connectivity technology

Wired


HDMI ports quantity

1


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

4


USB 3?2 Gen 2 (3?1 Gen 2) Type-C ports quantity

2


Microphone in

Yes


DC-in jack

Yes


Combo headphone/mic port

Yes


Headphone connectivity

3.5 mm



Performance


Data transfer rate

5 Gbit/s


Cable lock slot

Yes


Maximum digital resolution

5120 x 2880 pixels


Rubber feet

Yes


Product colour

Black, Silver


Card reader integrated

No


Housing material

Plastic


On/off switch

Yes


Certification

CE, FCC, TAA, REACH


UASP support

Yes



Power


AC input voltage

100 - 240 V


Output voltage

20 V


Power plug type

Type N


Input current

2.5 A


Power supply

100 W


Compatible power plug types

EU, UK


Output current

7.5 A



Packaging data


Package height

80 mm


Package depth

320 mm


Package width

160 mm


Package weight

1.7 kg
