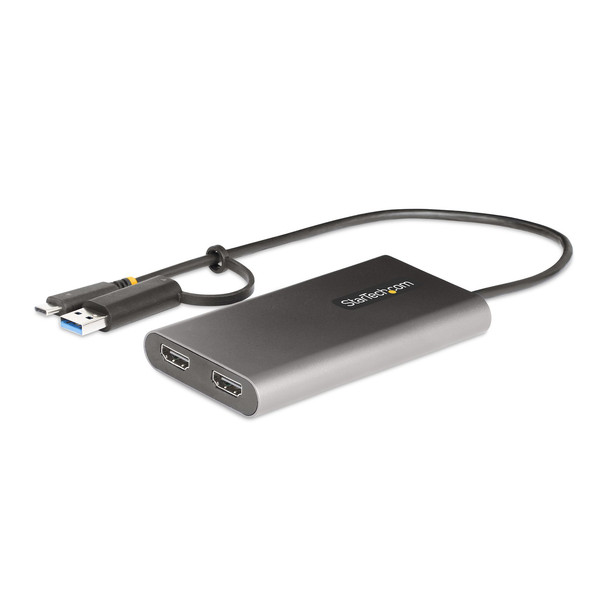

Startech USB-C to Dual-HDMI Adapter - USB-C or A to 2x HDMI - 4K 60Hz - 100W Pow 109B-USBC-HDMI

Dual 4K 60Hz HDMI Output | Attached USB-C to USB-A DongleConnect two 4K 60Hz HDMI displays to the USB Type-C or Type-A port of a laptop/desktop computer, using this USB-C to Dual-HDMI Adapter.Power Delivery Pass-ThroughThe USB video adapter features USB Power Delivery (PD) 3.0 pass-through (up to 100W), enabling powering and charging of a laptop when connected to a USB-C power adapter. The adapter runs on USB bus-power when no USB-C power adapter is connected. PD 3.0 features Fast Role Swap (FRS) that prevents USB data disruption when USB-C power is disconnected and the adapter switches to USB bus power.DisplayLink Certified 4K 60Hz ResolutionThe USB multi-monitor adapter is DisplayLink Certified and supports high-performance dual-monitor 4K 60Hz video resolutions with an integrated DisplayLink DL-6950 Controller.Comprehensive CompatibilityThe USB video adapter is compatible with Windows, macOS, Ubuntu, and Chrome OS. The integrated USB-C to USB-A adapter enables the flexibility of connecting to any host that is running a compatible operating system. The built-in 1ft (30cm) USB-C/A cable is ideal for on the go use. The length of the cable and the strain reliefs reduce connector/port strain.This product is backed for 3-years by StarTech.com, including free 24/5 multi-lingual technical assistance.The StarTech.com Advantage

Features


USB TO DUAL HDMI: This USB-C or USB-A to Dual-HDMI Adapter adds up to two 4K 60Hz HDMI monitors to a computer; 100W Power Delivery pass-through with up to 90W host charging; 5.1ch HDMI Audio; 2x DisplayLink based HDMI Outputs


APPLE M1/M2 COMPATIBLE: Works with macOS enabling extended dual displays on USB-C and Thunderbolt 3/4 laptops including Apple M1 / M2 MacBooks which are not natively capable of driving more than one external display; Requires Driver Download for macOS


DISPLAYLINK CERTIFIED: Universal Adapter works w/ Windows, macOS, Ubuntu, and ChromeOS; Automatic driver install in Windows & ChromeOS; Works with USB 3.2 Gen 1 (5Gbps), USB-C, USB4, Thunderbolt 3/4; 1ft/30cm built-in cable to reduce port/connector strain


EXTERNAL VIDEO GRAPHICS ADAPTER: Connect additional displays when extra video ports are not available on the laptop or dock; Use with two external monitors and a workstation laptop screen; Ideal for business productivity apps, not ideal for gaming


RELIABLE PERFORMANCE: USB bus powered or 100W PD pass-through (10W reserved for adapter + 90W for laptop charging); Prevents device dropouts, video flickering, and power overdraw; Aluminum enclosure provides EMI shielding and helps with heat dissipation



Design


Integrated USB cable

Yes


USB cable length

0.3 m


Product colour

Grey


Housing material

Aluminium, Plastic



Weight & dimensions


Package height
mm


Package depth

60 mm


Package width
4 mm


Package weight
0 g



Packaging content


Quick installation guide

Yes


Interface adapters included

USB Type-A male - USB Type-C female



Logistics data


Master (outer) case width

440 mm


Master (outer) case height

320 mm


Products per master (outer) case

40 pc(s)


Master (outer) case length

420 mm



Technical details


Sustainability compliance

Yes


Sustainability certificates

CE, RoHS



Operational conditions


Operating temperature (T-T)

0 - 40 -C


Operating relative humidity (H-H)
- 80


Storage temperature (T-T)

-20 - 70 -C



Performance


USB connector type

USB Type-C


USB Power Delivery

Yes


USB version

3.2 Gen 1 (3.1 Gen 1)


Chipset

DisplayLink - DL6950


Maximum resolution

3840 x 2160 pixels


Supported graphics resolutions
80 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160


DVI output

No


USB 3?2 Gen 1 (3?1 Gen 1) Type-C ports quantity

1


Number of displays supported

2


Audio output channels

5.1 channels


HDMI ports quantity

2


HDMI output

Yes


USB connector gender

Male


DisplayPort output

No


USB connector form factor

Straight



System requirements


Mac compatibility

Yes


Other operating systems supported

ChromeOS


Mac operating systems supported

Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura


Linux operating systems supported

Ubuntu 18.04 LTS, Ubuntu 20.04 LTS
