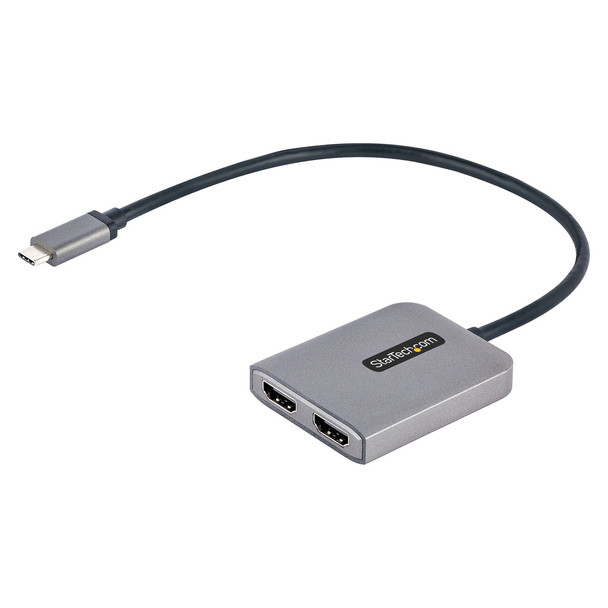

Startech USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB Type C Multi Monit MST14CD122HD

2 x 4K 60Hz | Multi-Monitor Video Splitter | Windows� | DSC | HDRThis USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.Multi-tasking Made EasyThis USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.Host ConnectionOutput 1 ResolutionOutput 2 ResolutionDisplayPort 1.4 with DSC4K 60Hz4K 60HzDisplayPort 1.44K 60Hz4K 30HzDisplayPort 1.24K 30Hz4K 30Hz4K at 60Hz and HDRMulti-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.Hassle-Free SetupWindows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.The StarTech.com Advantage

Features


MULTI-MONITOR CONFIGURATION: USB Type-C to Dual HDMI MST Hub/Splitter drives up to two 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS


NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage


HARDWARE COMPATIBILITY: Dual 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU


EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces


OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual HDMI Adapter



Design


Integrated USB cable

Yes


USB cable length

0.3 m


Product colour

Black, Grey


Housing material

Plastic



Weight & dimensions


Package height

30 mm


Package depth

170 mm


Package width

142 mm


Package weight

108.8 g


Height

14 mm


Width

105 mm


Depth

43 mm


Weight

55 g



Logistics data


Master (outer) case width

473 mm


Master (outer) case height

440 mm


Products per master (outer) case

70 pc(s)


Master (outer) case length

331 mm


Harmonized System (HS) code

84733020



Technical details


Sustainability certificates

CE, RoHS



Operational conditions


Operating temperature (T-T)

0 - 70 �C


Operating relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-10 - 55 �C



Performance


USB connector type

USB Type-C


Chipset

Synaptics VMM5200


Maximum resolution

3840 x 2160 pixels


DVI output

No


High Dynamic Range (HDR) supported

Yes


Data transfer rate (max)

32.4 Gbit/s


Number of displays supported

2


Audio output channels

7.1 channels


HDMI ports quantity

2


HDMI output

Yes


Refresh rate at maximum resolution

60 Hz


USB connector gender

Male


DisplayPort output

Yes


USB connector form factor

Straight



System requirements


Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64
