Startech

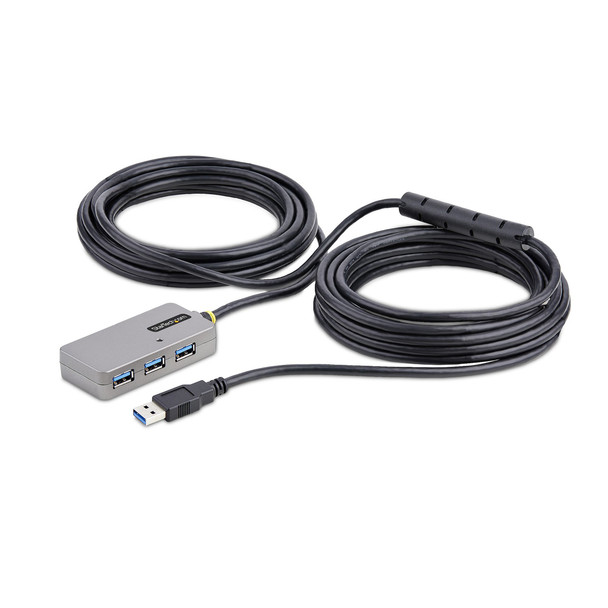

Startech USB Extender Hub 10m USB 3.0 Extension Cable with 4-Port USB-A Hub Acti U01043-USB-EXTENDER
- UPC:
- 65030897365
- MPN:
- U01043-USB-EXTENDER
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
USB Extender Hub | USB 3.0 Extension Cable with 4-Port USB Hub | Bus Powered | 32.8ft Long CableThe 32.8ft USB 3.0 Extension Cable with 4-Port USB Hub and 5Gbps transfer rates enables multiport connectivity at distances that exceed standard USB 3.0 distance and power source limitations. Daisy chain up to two USB active extension cables for a maximum range of 65.6ft (20m).Power OptionsActive electronics allow the USB-A Hub to function without requiring external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V4A DC power adapter supports USB peripherals that require additional power.Control multiple USB peripherals in remote locations (e.g., webcams, CCTV remote monitoring, remote printers, SSDs, HDDs, scales, mice, keyboards, and other devices) using this 4-port 32.8ft (10m) USB extension cable.Host and Device CompatibilityThe backward compatibility with USB 2.0 and 1.1 ensures functionality with legacy equipment. The hub/cable features USB 3.0/3.2 Gen 1 with data transfer speeds up to 5 Gbps and plug and play (PnP) setup on any operating system, enabling rapid deployment.The Level-2 ESD protection (4kV air and 4kV contact) and the cable shielding enhance USB device safety and minimize EMI.The USB Extender Hub is backed for two years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Features
LONG-RANGE ACTIVE USB EXTENDER: 4x USB 3.0/3.2 Gen 1 (5 Gbps) Hub with built-in 32.8ft (10m) active extension cable; Power the USB extension cable via bus power or power adapter (included)
STABLE SIGNAL: Active repeater booster chip in the 4-Port USB Extension Hub maintains signal integrity and ensures optimal performance; Power adapter (5V/4A DC, 20W) is not required in most scenarios; Power adapter enables up to 1A per port
FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB Hub extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 65.6ft (20m) by daisy-chaining two units
COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems using USB mouse or keyboard; Backward compatible with USB 2.0/1.1; Driverless and OS independent; The USB extender Hub adds an extra layer of safety with Level 2 ESD protection
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB Hub repeater is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Design
Cable shielding
Aluminum mylar foil
Weight & dimensions
Height
18 mm
Width
40 mm
Weight
100 g
Packaging content
Quick start guide
Yes
AC adapter included
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case height
360 mm
Products per master (outer) case
10 pc(s)
Master (outer) case length
425 mm
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC)
Other features
Chipset
VIA Labs - VL817
Features
Data transfer rate
5000 Mbit/s
Product colour
Black, Silver
Cable jacket material
Recycled Polyvinyl chloride (rPVC)
Cable length
10 m
Housing material
Plastic
Connector contacts plating
Nickel
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 �C
Operating relative humidity (H-H)
30 - 70
Storage temperature (T-T)
-40 - 55 �C
Ports & interfaces
USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity
4
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity
4
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Power
Input voltage
100 - 240 V
Power consumption (typical)
20 W
Output voltage
5 V
Power plug type
Type H
Power supply type
DC
Input current
0.6 A
Output current
4 A
Packaging data
Package height
55 mm
Package depth
225 mm
Package width
190 mm
Package weight
1 kg
View AllClose
Features
LONG-RANGE ACTIVE USB EXTENDER: 4x USB 3.0/3.2 Gen 1 (5 Gbps) Hub with built-in 32.8ft (10m) active extension cable; Power the USB extension cable via bus power or power adapter (included)
STABLE SIGNAL: Active repeater booster chip in the 4-Port USB Extension Hub maintains signal integrity and ensures optimal performance; Power adapter (5V/4A DC, 20W) is not required in most scenarios; Power adapter enables up to 1A per port
FLEXIBLE INSTALLATION: Active electronics allow the compact 4-port USB Hub extension cable to work via bus-power when no power outlets are available; Achieve a maximum range of 65.6ft (20m) by daisy-chaining two units
COMPATIBILITY: The USB extender supports wake-on-USB to wake host systems using USB mouse or keyboard; Backward compatible with USB 2.0/1.1; Driverless and OS independent; The USB extender Hub adds an extra layer of safety with Level 2 ESD protection
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this USB Hub repeater is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Design
Cable shielding
Aluminum mylar foil
Weight & dimensions
Height
18 mm
Width
40 mm
Weight
100 g
Packaging content
Quick start guide
Yes
AC adapter included
Yes
Logistics data
Master (outer) case width
250 mm
Master (outer) case height
360 mm
Products per master (outer) case
10 pc(s)
Master (outer) case length
425 mm
Sustainability
Sustainability compliance
Yes
Sustainability certificates
CE, Federal Communications Commission (FCC)
Other features
Chipset
VIA Labs - VL817
Features
Data transfer rate
5000 Mbit/s
Product colour
Black, Silver
Cable jacket material
Recycled Polyvinyl chloride (rPVC)
Cable length
10 m
Housing material
Plastic
Connector contacts plating
Nickel
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 �C
Operating relative humidity (H-H)
30 - 70
Storage temperature (T-T)
-40 - 55 �C
Ports & interfaces
USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity
4
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Ports quantity
4
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Power
Input voltage
100 - 240 V
Power consumption (typical)
20 W
Output voltage
5 V
Power plug type
Type H
Power supply type
DC
Input current
0.6 A
Output current
4 A
Packaging data
Package height
55 mm
Package depth
225 mm
Package width
190 mm
Package weight
1 kg
