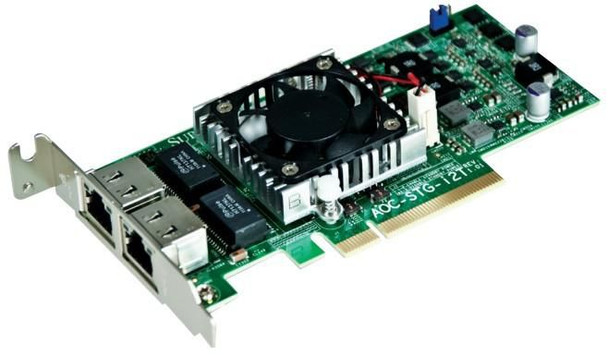

Supermicro AOC-STG-I2T Contrl. AOC-STG-I2T PCIe 10Gb AOC-STG-I2T

The Supermicro AOC-STG-i2T is the lowest power and least cost 10GbE adapter solution in today�s data center marketplace. The auto-negotiation feature between 1GbE and 10GbE provided by the AOC-STG-i2T offers users the backwards compatibility they need for a smooth transition to 10GbE. It reliably addresses the demanding needs of bandwidth-intensive applications at a fraction of the cost of traditional 10GbE adapters by utilizing cost-effective RJ-45 connectors at a much longer cabling distance. The Supermicro AOC-STG-i2T 10GbE adapter is truly a best-in-class solution for advanced data centers.

- Dual RJ45 Connectors.
- Low-Profile, Short Length Standard Form Factor.
- PCI Express 2.1 (2.5GT/s or 5GT/s).
- Intel QuickData Technology.
- VMDq, Next-Generation VMDq, and PC-SIG SR-IOV for Virtualized Environments.
- Jumbo Frames Support up to 15.5KB.
- Load Balancing on Multiple CPUs.
- iSCSI Remote Boot Support.
- Fibre Channel over Ethernet (FCoE).
- Support the most popular Network .
- Operating Systems (NOSs).
- Support RJ-45 Category-6 or 6A.
- RoHS compliant 6/6.

Design



Component for



PC


Internal



Yes


LED indicators



LAN


Product colour



Silver


Logistics data



Harmonized System (HS) code



85176990


Network



Copper ethernet cabling technology



1000BASE-T, 10GBASE-T


Ethernet LAN data rates



1000


Jumbo frames support



Yes


Networking standards



IEEE 802.1Q


Supported network protocols



IP, TCP, UDP, IPv6


Operational conditions



Operating temperature (T-T)



0 - 55 �C


Other features



Connection to PC



Yes


Data transfer rate



10 Gbit/s


Fiber Channel over Ethernet



Yes


Intel Virtual Machine Device Queues (VMDq)



Yes


Management protocols



SNMP, RMON


Wireless connection



No


Package dimensions



Gross Weight (Package, kg)



0.21000000000000002 kg


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



2


Host interface



PCI Express


Interface



Ethernet


PCI Card form factor



Full-height (low-profile)


Power



Power consumption (typical)



13 Watt


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



13.65 cm


Product Width



6.35 cm


Sustainability



Sustainability certificates



RoHS


System requirements



Internet connection required



Yes


Vendor information



Brand Name


Supermicro


Warranty



1 Year(s)
