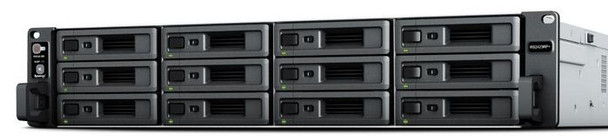

Synology RS2423+ Rackstation. 12-BAY. AMD QUAD RS2423+

Secure storage for your business

Business-ready

Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216 TB raw storage before expansion.

Flexible configuration

Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.

Versatile applications

Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.

Faster and more responsive

The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.

Designed for reliability

The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.

Room for expansion

Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

Versatile storage for businesses

The RS2423+/RS2423RP+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.

Intuitive storage for on-site and remote teams

Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.

Enable efficient collaboration with Synology Drive

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.

Multi-platform support

Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time

Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

Connect teams with Hybrid Share

Use Hybrid Share to store large sets of data in the cloud, leveraging the large bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices.

Reliable data access on demand

With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from a reduced local storage footprint and lower bandwidth usage.

Local caching of most-used data

Frequently-accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.

Endpoint, VM, and NAS/SAN protection

Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware� and Hyper-V� virtual machines with Active Backup for Business.

Microsoft 365 and Google Workspace

Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

Hyper Backup

Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage,5public cloud platforms, USB devices, file servers, local folders, and other Synology systems.

Set and forget backup tasks with regular schedules, enhance security with granular user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning.

Snapshot Replication

Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds.

Smart and scalable surveillance

Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.

Wide device compatibility

Connect up to 50 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station�s wide camera compatibility.

Multi-platform convenience

Monitor live streams or watch recordings from web browsers, desktop clients, or the DS cam mobile app.

Secure and private storage

Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.

Assisted camera deployment

Automatically locate new cameras within a set IP range, and configure units in batch via spreadsheet import or replicating settings to new cameras.

Centralized management and monitoring

Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.

Time-saving video analytics

Take advantage of intelligent monitoring features such as motion detection, no-idle zones, foreign object detection, and anomaly detection that cater to common surveillance scenarios.
Flexible monitoring of multiple locations

Works best with Synology drives

Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS, featuring built-in data protection.

Works best with Synology drives

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Central Management System

Conveniently manage your fleet of Synology NAS from a centralized console.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Synology High Availability

Real-time system-level protection with automatic failover mechanism to maximize service availability.

Get extra protection with Extended Warranty Plus

Extend the standard 3-year hardware warranty8 of your RS2423(RP)+ with 2 more years of Synology-certified support and premium services that help you recover faster in the event of disaster.

Certificates



Certification



FCC BSMI VCCI RCM UKCA EAC CCC KC UL


Design



Built-in display



No


Built-in speaker(s)



No


Chassis type



Rack (2U)


Cooling type



Active


Fan diameter



6 cm


LED indicators



Y, Yes


Number of fans



3 fan(s)


Product colour



Black, Grey


Memory



ECC



Yes


Internal memory



8 GB


Internal memory type



DDR4


Maximum RAM supported



32 GB


Memory form factor



UDIMM


Memory slots



2


Network



Copper ethernet cabling technology



10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T


Ethernet LAN



Yes


Ethernet LAN data rate supported (max)



10000 Mbit/s


Ethernet LAN data rates



10, 100, 1000, 10000


iSCSI support



Yes


Link aggregation



Yes


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 35 �C


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



11.51 kg


Packaging content



Cables included



AC


External power adapter



No


Power cables quantity



1


Rack mount kit



Yes


Performance



Access Control List (ACL)



Yes


Backup features



Cloud, iSCSI LUN


Backup function



Yes


Browser supported



Google Chrome Firefox Microsoft Edge Safari


Built-in FTP server



Yes


Card reader integrated



No


Device class



Small & Medium Business


Management protocols



SNMP


Multilingual support



Yes


Noise level



52.3 dB


Security algorithms



AES


Snapshot



Yes


System log



Yes


Type



NAS


Ports & interfaces



Ethernet LAN (RJ-45) ports



3


PCI Express x8 (Gen 3.x) slots



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB port



Yes


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (typical)



119.95 Watt


Power supply location



Built-in


Power supply unit (PSU) capacity



500 Watt


Redundant power supply (RPS) support



No


Processor



Number of processors supported



1


Processor boost frequency



3.6 GHz


Processor cores



4


Processor family



AMD Ryzen


Processor frequency



3.35 GHz


Processor manufacturer



AMD


Processor model



V1780B


Product dimensions



Net Weight (Product, kg)



11.5 kg


Product Depth



56.2 cm


Product Height



8.8 cm


Product Width



48.2 cm


Software



Operating system installed



DiskStation Manager


Operating system version



7.1.1


Storage



Hot-swap drive bays



Yes


Installed storage drive type



No


Number of storage drives supported



12


Online RAID expansion



Yes


Online RAID migration



Yes


RAID levels



0, 1, 5, 6, 10, JBOD


RAID support



Yes


Storage drive sizes supported



2.5, 3.5


Storage drives installed



No


Supported file systems



BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4


Supported storage drive interfaces



Serial ATA


Supported storage drive types



HDD & SSD


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Synology


Warranty



2 Year(s)
