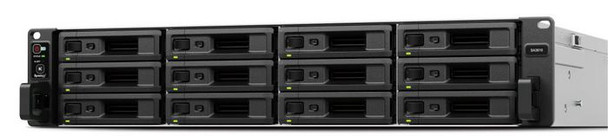

Synology SA3610 Rackstation. 12-BAY. Intel SA3610

Certificates



Certification



FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL


Design



Built-in display



No


Built-in speaker(s)



No


Chassis type



Rack (2U)


Cooling type



Active


Fan diameter



8 cm


LED indicators



Y, Yes


Number of fans



4 fan(s)


Product colour



Black, Grey


Memory



ECC



Yes


Internal memory



16 GB


Internal memory type



DDR4


Maximum RAM supported



128 GB


Memory form factor



RDIMM


Memory slots



4


Network



Copper ethernet cabling technology



10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T


Ethernet LAN



Yes


Ethernet LAN data rate supported (max)



10000 Mbit/s


Ethernet LAN data rates



10, 100, 1000, 10000


iSCSI support



Yes


Link aggregation



Yes


Supported network protocols



SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV


Wake-on-LAN ready



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 35 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 60 �C


Package dimensions



Gross Weight (Package, kg)



14.51 kg


Packaging content



Cables included



AC


Power cables quantity



1


Performance



Access Control List (ACL)



Yes


Backup features



Cloud, iSCSI LUN


Backup function



Yes


Browser supported



Google Chrome Firefox Microsoft Edge Safari


Built-in FTP server



Yes


Built-in UPnP AV media server



Yes


Buzzer



Yes


Card reader integrated



No


Device class



Small & Medium Business


Management protocols



SNMP


Multilingual support



Yes


Noise level



49.8 dB


On/off switch



Yes


Reset button



Yes


Security algorithms



AES


Snapshot



Yes


System log



Yes


Type



NAS


Ports & interfaces



Ethernet LAN (RJ-45) ports



7


PCI Express x8 (Gen 3.x) slots



2


Serial ports quantity



1


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB port



Yes


Power



AC input frequency



50 / 60 Hz


AC input voltage



100 - 240 V


Number of power supply units



1


Power consumption (typical)



137.54 Watt


Power supply location



Built-in


Power supply unit (PSU) capacity



550 Watt


Redundant power supply (RPS) support



No


Processor



Conflict-Free processor



Yes


CPU configuration (max)



1


Number of processors supported



1


Processor boost frequency



2.7 GHz


Processor cores



12


Processor family



Intel� Xeon�


Processor frequency



2.1 GHz


Processor manufacturer



Intel


Processor model



D-1567


Processor special features



Embedded options available



Yes


Enhanced Intel SpeedStep Technology



Yes


Execute Disable Bit



Yes


Idle States



Yes


Intel 64



Yes


Intel Enhanced Halt State



Yes


Intel Secure Key Technology version



1.00


Intel Trusted Execution Technology



Yes


Intel TSX-NI



Yes


Intel TSX-NI version



1.00


Intel Virtualization Technology (VT-x)



Yes


Intel Virtualization Technology for Directed I/O (VT-d)



Yes


Intel VT-x with Extended Page Tables (EPT)



Yes


Product dimensions



Net Weight (Product, kg)



14.5 kg


Product Depth



72.4 cm


Product Height



8.8 cm


Product Width



48.2 cm


Software



Operating system installed



DiskStation Manager


Storage



Hot-swap drive bays



Yes


Installed storage drive type



No


Number of storage drives supported



12


Online RAID expansion



Yes


Online RAID migration



Yes


RAID levels



0, 1, 5, 6, 10, F1, JBOD


RAID support



Yes


Storage drive sizes supported



2.5, 3.5


Storage drives installed



No


Supported file systems



BTRFS, Fat, HFS+, NTFS, exFAT, ext3, ext4


Supported storage drive interfaces



Serial ATA, Serial Attached SCSI (SAS)


Supported storage drive types



HDD & SSD


Technical details



Sustainability certificates



CE, RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Synology


Warranty



3 Year(s)
