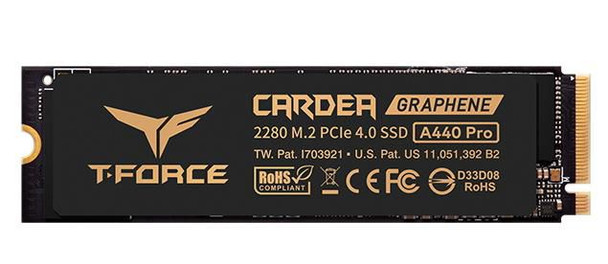

Team Group TM8FPR001T0C129 T-force Cardea A440 Pro M.2 1 TM8FPR001T0C129

The all-new, upgraded special aluminum fin type heat sink can effectively reduce the temperature by 48% and delay speed dropping
CARDEA A440 PRO SSD has an all-new, upgraded special aluminum fin type heat sink. Its special conduction design can effectively reduce the temperature by up to 48%. Compared to other SSDs, it is more stable in terms of read and write performance. It delays the occurrence of speed drop caused by high temperature generated during high-speed operations.

The flagship SSD that keeps on pushing the limits
With the latest PCIe Gen4x4 interface, the CARDEA A440 PRO PCIe4.0 flagship SSD continues to go beyond the limits, delivering amazing sequential read/write speeds of 7,400/7,000 MB/s, which is 15 times faster than the performance of typical SATA SSDs. It is also backwards compatible with PCIe 3.0 specification interface.

Patented ultra-thin graphene heat spreader for flexible installation
The patented ultra-thin graphene heat spreader contains graphene�s best thermal conductivity material, and the heat dissipation can be enhanced by up to 9%. The installation is very flexible and there won�t be any problem of interference.

Two different packages of cooling modules for you to choose from
The first in the industry to offer two different packages of cooling modules, allowing you to choose the most suitable heat sink or heat spreader for your device according to your needs.

Support the latest NVMe 1.4 specification
By supporting the latest NVMe 1.4 specification and optimizing the work division mechanism of NVM Sets and PLM (Predictable Latency Mode), it can effectively reduce latency time and the write loss and improve the QoS of the system. The use of the latest RRL (Read Recovery Level) technology can also improve the service life of SSD.

Features



Component for



PC


Hardware encryption



No


Interface



PCI Express 4.0


Linux operating systems supported



Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Linpus Lite 2.1, Linux Kernel 5.8


Mean time between failures (MTBF)



3000000 Hour


NVMe



Yes


NVMe version



1.4


PCI Express interface data lanes



x4


Random read (4KB)



1000000 IOPS


Random write (4KB)



1000000 IOPS


Read speed



7200 MB/s


SSD capacity



1 TB


SSD form factor



M.2


TBW rating



700


Windows operating systems supported



Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista


Write speed



6000 MB/s


Operational conditions



Maximum operating temperature



70 �C


Operating relative humidity (H-H)



0 - 90 %


Operating shock



1.5 kg


Operating temperature (T-T)



0 - 70 �C


Operating vibration



20 G


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.91 kg


Power



Operating voltage



3.3 V


Product dimensions



Net Weight (Product, kg)



0.7 kg


Product Depth



8 cm


Product Height



0.37 cm


Product Width



2.2 cm


Technical details



Sustainability certificates



RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Team Group


Warranty



1 Year(s)
