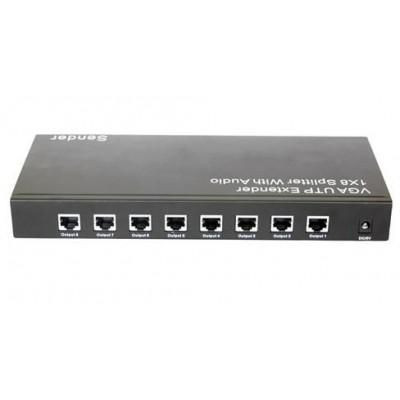

Techly IDATA-MSV-AU8B Video Splitter Vga IDATA-MSV-AU8B

This Extender / Splitter 1x8 VGA with Audio is an ideal device for local and remote viewing. Extends VGA / audio signals using Cat5e / 6 cables through 8 remote at a maximum distance of 300 m. Supports VGA resolutions up to 1920 x 1200. It provides a clear signal. Easy to install - no software required. Great for take long distances to monitor and audio presentations, demonstrations, exhibitions, meeting rooms, etc ...

Features



Maximum operating distance



300 m


Maximum resolution



1920 x 1200 Pixels


Product colour



Black


Supported graphics resolutions



640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 960, 1600 x 1200 (UXGA), 1600 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)


Supported video modes



720p, 1080p


Logistics data



Harmonized System (HS) code



85176990


Network



Ethernet LAN



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 85 %


Operating temperature (T-T)



0 - 45 �C


Storage temperature (T-T)



-10 - 80 �C


Package dimensions



Gross Weight (Package, kg)



0.52 kg


Packaging content



AC adapter included



Yes


Manual



Yes


Ports & interfaces



Audio ports quantity



2


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



8


Video out



VGA


Video port type



VGA


Video ports quantity



2


Power



Output current



4 A


Output voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.4 kg


Vendor information



Brand Name


Techly


Warranty



1 Year(s)


Weight & dimensions



Dimensions (WxDxH)



266 x 115 x 32 mm
