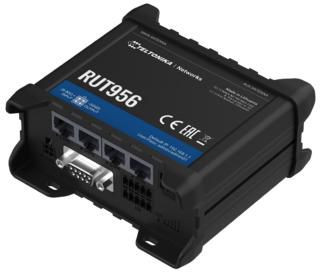

Teltonika RUT956200000 RUT956 WiFi/4G Router RUT956200000

RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.

Antenna



Antenna type



External


Antennas quantity



5


Design



Device type



Cellular network router


Housing material



Aluminium, Plastic


LED indicators



Y, Yes


Market positioning



Industrial


Mounting



DIN-rail


Product colour



Black


Reset button



Yes


Ethernet LAN features



Auto MDI/MDI-X



Yes


Ethernet LAN



Yes


Ethernet LAN data rates



100


Ethernet LAN interface type



Fast Ethernet


Networking standards



IEEE 802.3, IEEE 802.3u


GPS Performance



BeiDou



Yes


Galileo



Yes


GLONASS



Yes


GPS (satellite)



Yes


Quasi-Zenith Satellite System (QZSS)



Yes


Management features



Web-based management



Yes


Mobile network



Data network



2G, 3G, 4G


Number of SIM cards



2


Short Message Service (SMS)



Yes


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Package dimensions



Depth (package,cm)



17.5 cm


Gross Weight (Package, kg)



0.63 kg


Height (package,cm)



6 cm


Width (package,cm)



35.5 cm


Performance



Built-in processor



Yes


Operating system installed



RutOS


Ports & interfaces



Ethernet LAN (RJ-45) ports



3


USB 2.0 ports quantity



1


USB port



Yes


Power



Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.286999999999999 kg


Product Depth



10 cm


Product Height



5 cm


Product Width



11 cm


Security



DMZ support



Yes


Firewall



Yes


Network address translation (NAT)



Yes


Port forwarding



Yes


Security algorithms



HTTPS, SSH, SSL/TLS, WEP, WPA-EAP, WPA-PSK, WPA2-Enterprise, WPA2-PSK


Serial interface



Serial interface type



RS-232, RS-485


Serial ports quantity



2


Vendor information



Brand Name


Teltonika


Wireless LAN features



Wi-Fi



Yes


Wi-Fi standards



802.11b, 802.11g, Wi-Fi 4 (802.11n)
