Teltonika Networks

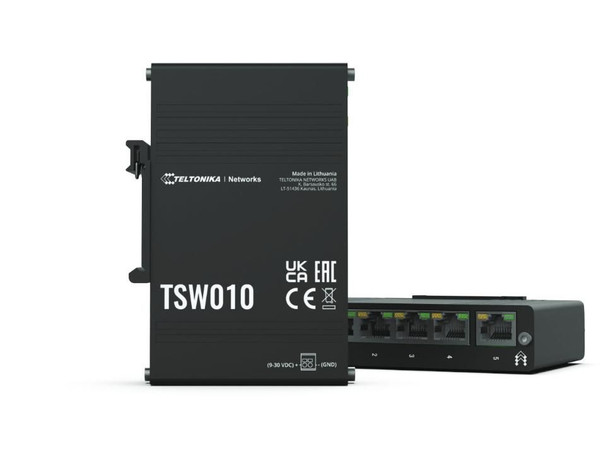

Teltonika TSW010000000 TSW010 DIN RAIL SWITCH TSW010000000
- UPC:
- 4779051840274
- MPN:
- TSW010000000
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 7-10 working days)
Description
TSW010 DIN RAIL SWITCH
Data transmission
Jumbo frames
2048
Jumbo frames support
Yes
MAC address table
2000 entries
Packet buffer memory
0.128 MB
Switching capacity
1 Gbit/s
Design
Certification
CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM
DIN rail mounting
Yes
Housing material
Aluminium
International Protection (IP) code
IP30
LED indicators
Y, Yes
Product colour
Black
Network
10G support
No
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10, 100
Networking standards
IEEE 802.3, IEEE 802.3az, IEEE 802.3u
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
-40 - 75 �C
Package dimensions
Depth (package,cm)
17.5 cm
Gross Weight (Package, kg)
0.164 kg
Height (package,cm)
3.5 cm
Width (package,cm)
15 cm
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
DC-in jack
Power
Input voltage
9 - 30 V
Power consumption (max)
0.9 Watt
Power consumption (typical)
0.3 Watt
Power source
DC/PoE
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
1
Power over Ethernet (PoE) type supported
Passive PoE
Product dimensions
Net Weight (Product, kg)
0.036 kg
Product Depth
8.05 cm
Product Height
2.74 cm
Product Width
11.31 cm
Vendor information
Brand Name
Teltonika
Homepage
https://teltonika-networks.com/lt/product/tsw010/
Warranty
2 Year(s)
