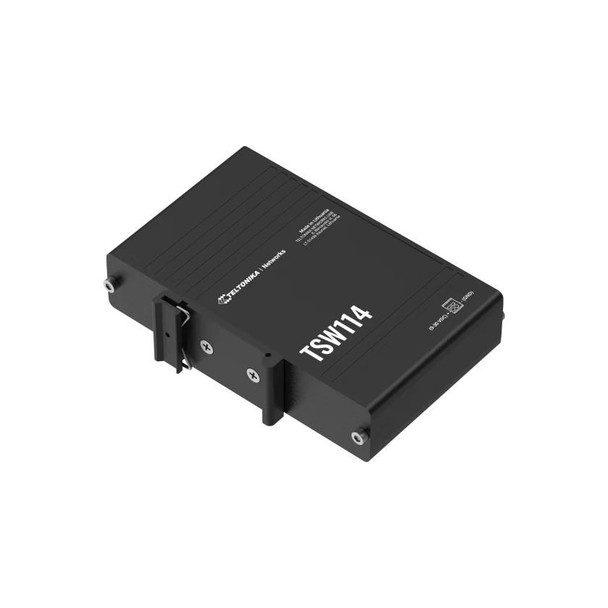

Teltonika TSW114000000 TSW114 Gigabit DIN Rail TSW114000000

TSW114 is an affordable way to simplify your connectivity with its plug and play nature and 5 x Gigabit Ethernet ports that provide stable and reliable connectivity for high-bandwidth solutions. The switch has front-facing ports and an integrated DIN rail bracket to enable easy installation across many industrial environments - especially control cabinets.

Data transmission



Jumbo frames support



Yes


MAC address table



2000 entries


Design



Certification



CE, REACH, RoHS, WEEE UKCA, FCC, IC, CB, RCM


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP30


LED indicators



LAN, Power


Product colour



Black


Rack mounting



No


Stackable



No


Wall mountable



Yes


Management features



Switch type



Unmanaged


Network



10G support



No


Networking standards



IEEE 802.3, IEEE 802.3az, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Package dimensions



Gross Weight (Package, kg)



0.174 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



Power consumption (max)



2.3 Watt


Power source



DC


Product dimensions



Net Weight (Product, kg)



0.17 kg


Product Depth



8.05 cm


Product Height



2.74 cm


Product Width



11.31 cm


Vendor information



Brand Name


Teltonika


Warranty



2 Year(s)
