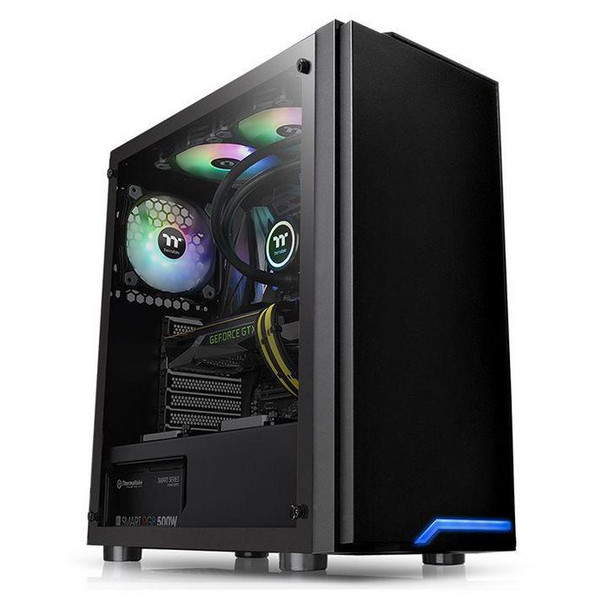

ThermalTake CA-1L4-00M1WN-02 H100 Tg Midi Tower Black CA-1L4-00M1WN-02

Thermaltake H100 TG ATX Mid Tower Chassis is designed with the concept of clean, simple, and sleek look which can fulfill basic but important needs from PC builders.

The H100 TG is designed for the PC builders who want a clean and sleek look but crave for cooling performance and tempered glass at the same time. The H100 TG is a standard mid-tower chassis with motherboard support up to ATX and one preinstalled 120mm fan. Exteriorly simple look and internally sophisticated design.

Simplicity Front Panel Style
The sleek front panel embedded with the blue LED stripe light shows simplicity in style is the way a pc case should be.

Built-in PSU Cover
Comes with a full-length PSU cover with a ventilated design to enhance the airflow and hide those unsightly cables.

Tempered Glass Window
The tempered glass window on the side of the H100 TG is built to be more durable and scratch resistant than older acrylic panels.

Superior Hardware Support
The H100 TG has outstanding expandability with support for a tower CPU cooler with maximum height 180mm, a dual expansion slot VGA of up to 320mm in length, and a power supply with length of up to 160mm (with 3.5� HDD Drive installed) and up to 220mm otherwise.

Excellent Cooling Capability
Optimized for excellent cooling capability with one 120mm exhaust fan preinstalled. The case is able to house up to dual 140mm or three 120mm front fans, up to 2x 140mm fans on top, and a radiator size up to 240mm on top to allow users to build a desired high-end system.

Handy I/O Ports
Two 3.0 USB ports on top-front panel to grant direct access when needed.

Cooling



Fan speed



1000 - 1000 RPM


Front fans diameters supported



120, 140


Front radiator sizes supported



240, 280


Noise level (high speed)



19.5 dB


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



2


Rear fans diameters supported



120, 140


Rear fans installed



1x 120 mm


Top fans diameters supported



120, 140


Top radiator sizes supported



240


Design



Form factor



Midi Tower


Material



SPCC, Tempered glass


Maximum CPU cooler height



18 cm


Maximum graphics card length



32 cm


Number of 3.5" bays



2


Number of expansion slots



7


On/off button



Yes


Product colour



Black


Reset button



Yes


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Logistics data



Harmonized System (HS) code



84733080


Other features



Tempered glass panel thickness



4 mm


Package dimensions



Gross Weight (Package, kg)



9.1 kg


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


Power supply



Power supply included



No


Supported power supply form factors



PS2


Product dimensions



Net Weight (Product, kg)



7 kg


Product Depth



45.4 cm


Product Height



41.6 cm


Product Width



21 cm


Storage



Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)
