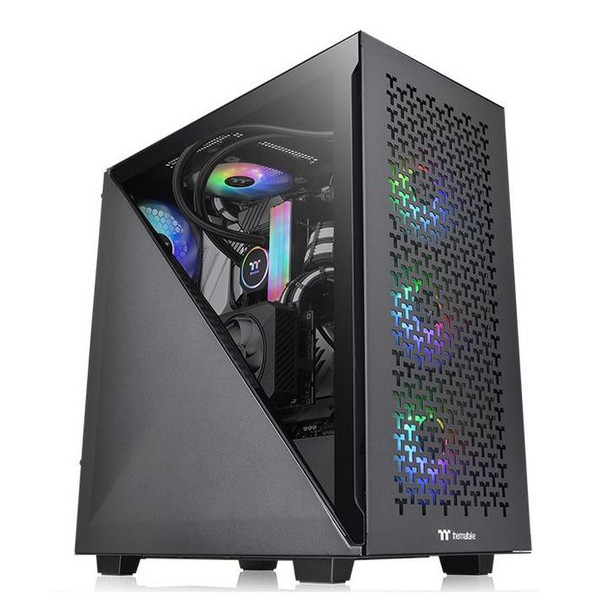

ThermalTake CA-1S2-00M1WN-02 Divider 300 Tg Air Midi Tower CA-1S2-00M1WN-02

The Divider 300 TG Air is an ATX mid tower case that comes with two preinstalled 120mm standard fans, a full-size mesh panel at the front, and one 3mm triangular tempered glass window on the left side.

Thermaltake designed a brand-new case series that contains a mixture of open-frame-styled elements and customizable options blending all the functionalities into the Divider Series. The most exceptional feature of the Divider 300 TG Air Mid Tower Case is the two symmetrical triangular pieces comprised of a steel panel and tempered glass window on the left side. On top of that, the air edition comes with one airflow-optimized mesh panel at the front for massive airflow. These panels are tool-free and easy to remove, showcasing the components inside. Additionally, the Divider 300 TG Air comes with two 120mm standard fans at the front and rear for maximum cooling performance. The Divider 300 TG Air ATX Mid Tower Case is the next -gen gaming PC case for regular users, enthusiasts, and gamers, giving them unprecedented satisfaction.

Avant-Grade Style Side Panels with Tempered Glass Windows
The exceptional feature of the Divider 300 TG Air is the two symmetrical triangular pieces comprised of a steel panel and 3mm tempered glass window on the left side. They are tool-free and can be removed seperately, giving users a little open frame flavor and additional custimization option when builing in the PC case.

Airflow-Optimized Panels
The Divider 300 TG Air comes with one large airflow-optimized mesh panel at the front for massive cooling performance.

PSU Cover & Riser GPU Support Bracket
The built-in PSU cover is designed to hide unsightly cables with overall good ventilation. The Riser cable bracket not only enables vertical GPU installation, but also helps reduce the weight on the PCI-E slots.

Display It Your Way
Patented rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system.

Excellent Dust Filtration
The Divider 300 TG Air has well-designed removal magnetic fan filters on the top and inner right side. At the front and base, the removable filters provide excellent dust protection and dirt reduction, ensuring a dust-free environment.

Air Intake and Exhaust
The cooling performance of the Divider 300 TG Air is excellent. The front mesh panel and the vent between the two triangular pieces of tempered glass and steel panels on the left side allow optimal air intake. Cooling exhausts are located at the rear of the case. On the top and right side, there are venting mechanisms for air intake or exhaust depends on the user’s overall PC layout design.

Idle and Full-load Temperature
To let our customers better understand the thermal performance of the Divider 300 TG Air Mid Tower Case, we placed an AIO Liquid Cooler at the front and ran a test system. It shows that the temperature around the front area is really low at idle and at full-load, with no obstructions and restricted airflow. For the test we used AIDA64 Extreme Portable and FurMark ASUS ROG Edition both running simultaneously for 30 minutes, and the thermal images were taken with Testo 885-2 Thermal Imaging Camera.

Cooling



Front fans diameters supported



120, 140


Front fans installed



1x 120 mm


Front radiator fan sizes supported



120, 140, 240, 280, 360


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of side fans supported (max)



2


Number of top fans supported (max)



1


Rear fans diameters supported



120


Rear fans installed



1x 120 mm


Rear radiator fan sizes supported



120


Side fans diameters supported



120


Top fans diameters supported



120, 140


Design



Form factor



Midi Tower


Material



SPCC


Maximum CPU cooler height



14.5 cm


Maximum graphics card length



39 cm


Maximum PSU length



22 cm


Number of 2.5" bays



7


Number of 3.5" bays



2


Number of expansion slots



7


Product colour



Black


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Type



PC


Package dimensions



Gross Weight (Package, kg)



10.63 kg


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Product dimensions



Net Weight (Product, kg)



8.18 kg


Product Depth



46.1 cm


Product Height



47.5 cm


Product Width



22 cm


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)
