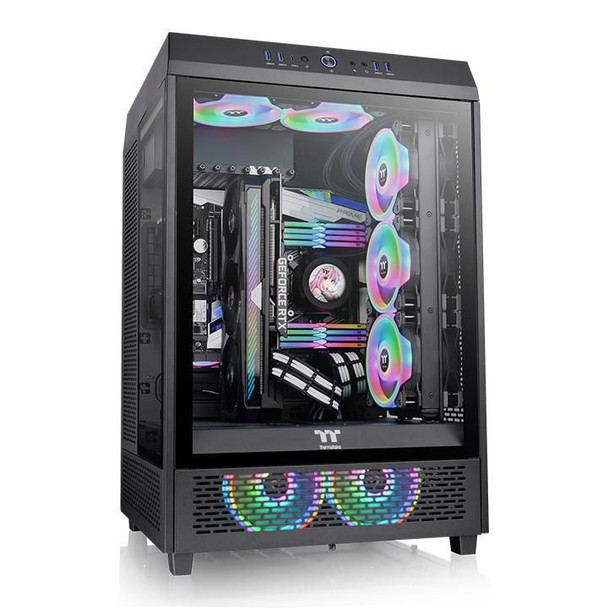

ThermalTake CA-1X1-00M1WN-00 The Tower 500 Midi Tower Black CA-1X1-00M1WN-00

Space is never a problem
Whether you�re a creator, enthusiast, gamer, or simply a regular user, the Tower 500 is designed for you.

Modeled after our legendary Tower 900 super chassis, the Tower 500 was created with the direction of inheriting all the significant functions while minimizing the overall footprint. On top of that, the Tower 500 allows additional support for an All-In-One liquid cooler, support for an E-ATX motherboard (max 12�x 12�), or any ATX motherboard. Users can build their PC the way they want.

Create and display your dream build
The Tower 500�s versatile interior is designed to suit the needs of both all-in-one and custom liquid cooling solutions, and it offers three 4mm tempered glass panels located at the front and sides, serving simultaneous protection while allowing the perfect showcase of your internal components.

Visually pleasing, totally interactive
Maximize your Tower 500�s visual effects by upgrading it with our optimal LCD Panel Kit.

The 3.9� LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes climate mode and time mode for users to expand the usage of our LCD displays.

Powerful cooling performance for 360mm AIOs
The enclosed radiator bracket can be installed on the right side, supporting up to a 360mm All-in-One radiator or any LCS radiators under 399mm. The space is sufficient for a push-pull configuration, with a total of six fans installed on the radiator to pursue extreme performance. The right-side panel can also be flipped 180 degrees to allow direct heat extraction from the mesh and further enhance ventilation.

Say goodbye to heat congestion
The vertical design of the Tower Series products adopts a chimney effect design to direct the heat vertically. With the Tower 500�s reimagined thermal design, you can pursue extreme system performance without worries.

We�ve tested everything, so you don�t have to
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 500 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.

Brilliant airflow & Incredible performance
Thermal images were taken during thermal testing. As you can see in the below photos, we were able to ensure that the cold air intakes and hot air exhausts are well-developed when designing this chassis, ensuring the interior temperature stays low and stable at all times.

Blow your world away with 2 powerful pre-installed cooling fans
2 x 120mm pre-installed rear fans were tested to be placed at specific positions to enhance cooling performance, preventing overheating for the CPU and GPU.

Choose the way you install
The Tower 500 has a new fan bracket that can be either installed vertically or horizontally to house 2 extra 120mm fans or a 240mm radiator.

Cleaning made easy, we�ve got you covered
Covered by seven magnetic easily detachable particle filters, the chassis is designed to keep out dust, dirt, and grime. The quick release mechanism makes cleaning easy and straightforward giving the user more freedom to what they like while spending less time on maintenance.

How much storage is totally up to you
The equipped HDD bracket for 3.5� or 2.5� hard drives can be expanded to mount up to eight 3.5� HDDs or four 3.5� HDDs plus eight 2.5� SSDs for additional space-saving.

Everything you need is located in one place
Four USB 3.0 ports and one USB 3.2 Gen 2 Type-C are placed on the top panel to grant direct access when needed.

DMD: Dismantlable Modular Design
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.

Cooling



Bottom fans diameters supported



120


Bottom radiator sizes supported



120, 240


Number of bottom fans supported (max)



2


Number of rear fans supported (max)



2


Number of side fans supported (max)



3


Number of top fans supported (max)



2


Rear fans diameters supported



120, 140


Rear fans installed



2x 120 mm


Side fans diameters supported



120


Side radiator sizes supported



120, 240, 360


Top fans diameters supported



120, 140


Top radiator sizes supported



120, 140, 240, 280


Design



Anti-dust filter



Yes


Form factor



Midi Tower


Material



SPCC, Tempered glass


Maximum CPU cooler height



27.5 cm


Maximum graphics card length



35.5 cm


Maximum PSU length



20 cm


Number of 2.5" bays



8


Number of 3.5" bays



4


Number of expansion slots



9


On/off button



Yes


Product colour



Black


Reset button



Yes


Side window



Yes


Suitable for



Gaming


Supported motherboard form factors



ATX, EATX, micro ATX, Mini-ITX


Tempered glass panel(s)



Yes


Type



PC


Package dimensions



Gross Weight (Package, kg)



19.24 kg


Ports & interfaces



Audio input



Y


Audio output



Y


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



4


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Supported power supply form factors



PS2


Product dimensions



Net Weight (Product, kg)



14.8 kg


Product Depth



39.8 cm


Product Height



60.8 cm


Product Width



38.8 cm


Storage



SSD form factor



2.5"


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)
