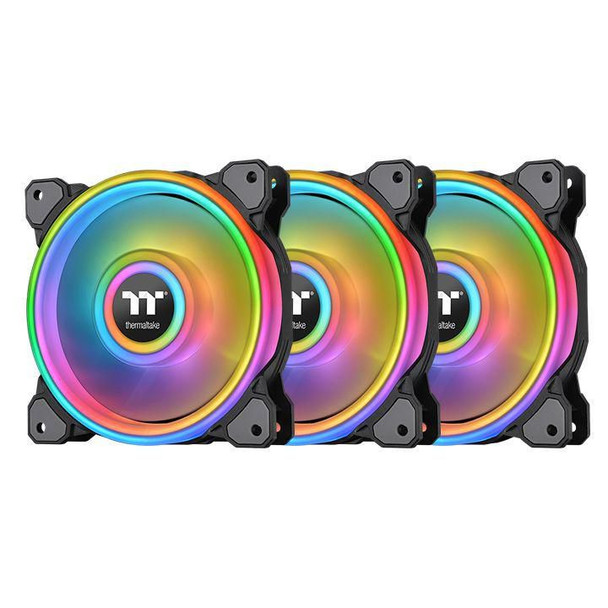

ThermalTake CL-F088-PL12SW-A Riing Quad 12 Rgb Computer CL-F088-PL12SW-A

Thermaltake Riing Quad radiator fan is designed with 4 independent LED rings totaling 54 LEDs and 16.8 million color combinations. The fan is virtually inaudible when in operation and supports our NeonMaker light editing software and TT RGB PLUS Ecosystem.

Riing Quad Series
The Riing Quad radiator fan is unique and in its class of its own, combining outstanding reliability, silent operation, unrivaled cooling, and most importantly the fan is engineered with 54 LEDs, split between 4 separate ring�s creating vibrant and gorgeous lighting effects when set through our NeonMaker light editing software.

NeonMaker Light Editing Software
The NeonMaker is a new and innovative approach to adjusting the RGB lighting on the Riing Quad fans, allowing users to customize lighting profiles and orchestrate their own light shows. Personalize the Riing Quad fans with NeonMaker!

SET UP YOUR SPECTACULAR LIGHTING
Create fascinating lighting effects with our NeonMaker Light Editing Software, energize your PC with dynamic RGB lighting across your build.

Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high-quality, friction-reducing substance, which lowers operation noise while improving thermal efficiency. The seal cap prevents lubricant leakage and extends the lifespan of the unit.

PWM Controlled Fan with 9-Fan Blade Design
Riing Quad�s PWM controlled fan is designed with 9 blades and is engineered to generate higher airflow without compromising on ultra-silent operation.

Extraordinary Cooling Performance
A specially designed fan blade allows even stronger flow, the Riing Quad fans ensure the cooling performance more efficient under intense operation.

Anti-Vibration Mounting System
The In-mold injection anti-vibration rubber pads allow the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products (CPU/VGA water blocks, AIO CPU coolers, PSUs, LED strips, gaming keyboards, headsets, mice and mouse pads) to create a RGB ecosystem that is truly unique to you.

Design



Illumination LED



Yes


Number of fans



3 fan(s)


Number of LEDs



54


Product colour



Black


Other features



Bearing life (L10)



40000 Hour


Fan rated voltage



5, 12 V


Package dimensions



Gross Weight (Package, kg)



0.25 kg


Performance



Bearing type



Hydraulic


Compatible processor series



Not supported


Fan diameter



12 cm


Maximum air pressure



1.4 mmH2O


Maximum airflow



40.9 cfm


Noise level (high speed)



25.2 dB


Noise level (low speed)



19.8 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



1500 RPM


Rotational speed (min)



500 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Power consumption (typical)



3.24 Watt


Starting voltage



9 V


Product dimensions



Net Weight (Product, kg)



0.19 kg


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm
