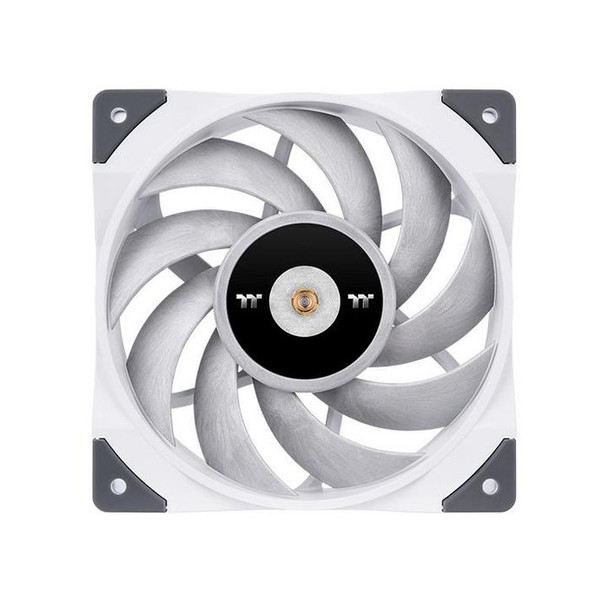

ThermalTake CL-F117-PL12WT-A Toughfan 12 Computer Case Fan CL-F117-PL12WT-A

Thermaltake TOUGHFAN 12 White PWM-controlled high static pressure fan features an optimized structure to maximize high-end cooling needs and fulfill users� wishes to add the color white to the series.

Powerful and Noiseless
TOUGHFAN 12 White high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 58.35 CFM with 2.41 mm-H2O static pressure, and maintaining a low audio noise level of 22.3 dB-A.

Exceptional Blade Design
Featuring high tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

Metal-Reinforced Motor Hub
The TOUGHFAN�s center is constructed with a full steel motor hub providing enhanced stability and durability.

The 2nd Generation Hydraulic Bearing
The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation. Lowering audible levels and extending lifespan.

Anti-Vibration Mounting System
The in-mold injection anti-vibration rubber pads dampen the vibration of the fan allowing the fan to spin at higher levels without compromising noise levels. The fan is designed with 80% coverage for all corners, maintaining low noise levels when in operation.

Design



Fan connector



4-pin


Number of fan blades



9


Product colour



White


Package dimensions



Gross Weight (Package, kg)



0.27 kg


Performance



Bearing type



Hydraulic


Fan diameter



12 cm


Maximum air pressure



2.41 mmH2O


Maximum airflow



58.35 cfm


Minimum air pressure



1.2522 mmH2O


Noise level (high speed)



22.3 dB


Noise level (low speed)



19 dB


Pulse-width modulation (PWM) support



Yes


Quantity per pack



1 pc(s)


Rotational speed (max)



2000 RPM


Rotational speed (min)



500 RPM


Suitable location



Computer case


Type



Fan


Power



Power supply



1.44 Watt


Rated current



0.12 A


Rated voltage



12 V


Starting voltage



9 V


Product dimensions



Net Weight (Product, kg)



0.21 kg


Product Depth



2.5 cm


Product Height



12 cm


Product Width



12 cm


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm
