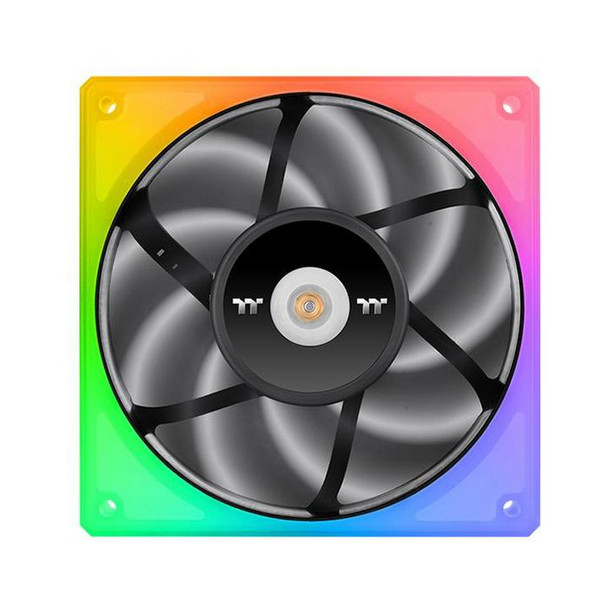

ThermalTake CL-F136-PL14SW-A Toughfan 14 Rgb Computer Case CL-F136-PL14SW-A

We Brought RGB Lighting into the Game
TOUGHFAN RGB is specially designed with a unique luminous fan frame with 24 addressable 16.8 million color LEDs evenly distributed within its frame. TOUGHFAN RGB adds more personality to the TOUGHFAN series and brings more lighting personalization options into your build.

Better User Experience and Better Lighting Effects
TOUGHFAN RGB adopts an all-new 4th generation software controller that can increase connection stability while syncing up TT RGB Plus supported products, allowing 16.8M RGB color lighting effects to match with any theme you wish.

Powerful and Silent
TOUGHFAN 14 RGB high static pressure fan can perform at a maximum operating speed of up to 2000 RPM, producing a consistent airflow of 107 CFM with 3.04 mm-H2O static pressure and maintaining a low audio noise level of 30.7 dB-A.

Stronger, More Stable, And Longer Lifespan
The TOUGHFAN RGB's center is constructed with the same full steel motor hub as any other TOUGHFAN series product, providing enhanced stability and durability.

It�s The Tiny Details That Makes The Difference
The TOUGHFAN RGB is also made with the 2nd generation hydraulic bearing, which incorporates a new shaft design with inside etches, allowing preservation of lubricant on both sides while reducing noise during operation�lowering audible levels and extending the lifespan for the fans.

Quality Comes From The Choice of Materials
To minimize the fans operation noise, the fan blades are constructed using Liquid crystal polymer (LCP), a high tensile strength and low thermal expansion coefficient material.

Transparent Anti-Vibration Mounting System
To best express the RGB lighting of TOUGHFAN RGB, we especially developed a transparent anti-vibration rubber pad that can dampen the fan's vibration, allowing the fan to spin at higher levels without compromising noise levels to show off RGB lighting at all angles. The rubber pads are designed to cover a large surface of all corners, maintaining low noise levels when in operation.

Design



Fan connector



9-pin


Illumination LED



Yes


Number of fans



3 fan(s)


Product colour



White


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging content



Number of screws



24


RGB controller included



Yes


Screws included



Yes


Velcro cable strap



Yes


Performance



Bearing type



Hydraulic


Fan diameter



14 cm


Maximum air pressure



3.04 mmH2O


Mean time between failures (MTBF)



50000 Hour


Noise level (high speed)



30.7 dB


Pulse-width modulation (PWM) support



Yes


Quantity per pack



3 pc(s)


Rotational speed (max)



2000 RPM


Rotational speed (min)



500 RPM


Suitable location



Computer case


Type



Fan


Power



Rated current



0.29 A


Rated voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



140 x 140 x 25 mm
