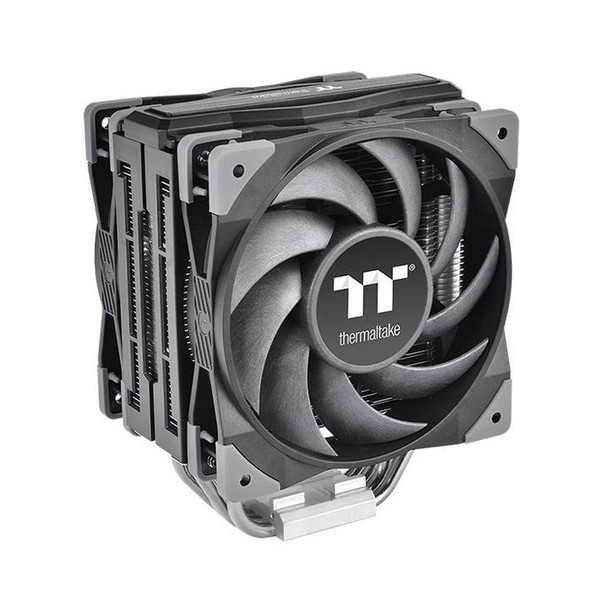

ThermalTake CL-P075-AL12BL-A Toughair 510 Processor Cooler CL-P075-AL12BL-A

A single tower dual fan designed CPU cooler equipped with two optimized 120 mm high static pressure fan and a newly designed heat sink, guaranteeing its outstanding performance.

Single Tower Dual Fan Design
TOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up to 180W.

Enhanced 120 mm high static pressure Fan
TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.

Asymmetric Fin Structure
The fin is designed with an asymmetric structure that allows larger air intake through the fins. This design lowers the air turbulence and straightens out the airflow making it easier to disperse heat from the fins, delivering superb cooling performance.

High-Performance U-shape copper heat pipes
4 x �6 mm heat pipes directly touch the CPU and thermal paste. The U-shape design creates perfect circulation for better CPU cooling performance.

Universal Compatibility
TOUGHAIR Series are designed to fit Intel and AMD sockets including the following models:
Intel LGA 1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

Design



Fan connector



4-pin


Material



Aluminium, Cooper


Number of fans



2 fan(s)


Number of heat pipes



4


Product colour



Black


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Performance



Fan diameter



12 cm


Maximum air pressure



2.41 mmH2O


Maximum airflow



58.35 cfm


Mean time between failures (MTBF)



40000 Hour


Noise level (high speed)



23.6 dB


Rotational speed (max)



2000 RPM


Rotational speed (min)



500 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2


Type



Cooler


Power



Rated current



0.48 A


Rated voltage



12 V


Starting voltage



6 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



12.36 cm


Product Height



15.95 cm


Product Width



9.88 cm


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Heat pipes diameter



6 mm
