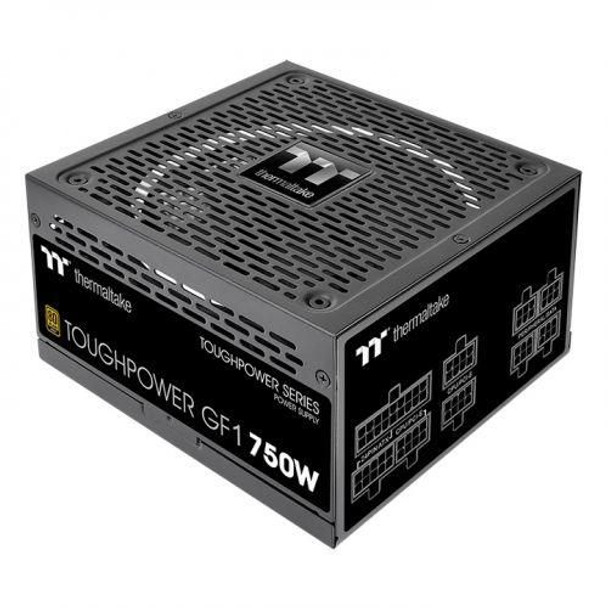

ThermalTake PS-TPD-0750FNFAGE-1 Toughpower Gf1 Tt Premium PS-TPD-0750FNFAGE-1

Toughpower GF1 750W - TT Premium Edition
The fully modular Toughpower GF1 series is available in 650W - 850W models and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50�C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 is able to satisfy the market, where PC enthusiasts are looking for a premium power supply with all the latest features.

Zero Cable Platform
Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

Ultra Quiet 140mm Hydraulic Bearing Fan
Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

?30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ?�2%
The voltage regulation, more strict than Intel�s standard �5% for major rails and �10% for -12V, is set to no more than �2% for major rails to meet the highest performance.

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105�C/221�F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready
Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS Gold. The series has been optimized to work with all generations of Intel�s processors to achieve maximum energy saving.

Design



Cooling type



Active


Fan diameter



14 cm


Number of fans



1 fan(s)


On/off switch



Yes


Product colour



Black


Logistics data



Harmonized System (HS) code



84733020


Operational conditions



Operating relative humidity (H-H)



20 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Performance



80 PLUS certification



80 PLUS Gold


Certification



CE/cTUVus/T�V S�D/FCC/BSMI/EAC


Mean time between failures (MTBF)



120000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC/Server


Ports & interfaces



ATX Power connector (24-pin)



Yes


CPU power connector (4+4 pin)



Yes


Motherboard power connector



24-pin ATX


PCI Express power connectors (6+2 pin)



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Hold time



16 Millisecond


Input current



10 A


Peak power



900 Watt


Power Factor Correction (PFC) type



Active


Power Good signal delay range



100 - 500 Millisecond


Power protection features



Over current, Over power, Over voltage, Short circuit, Under voltage


Total power



750 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



16 cm


Product Height



8.6 cm


Product Width



15 cm


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)
