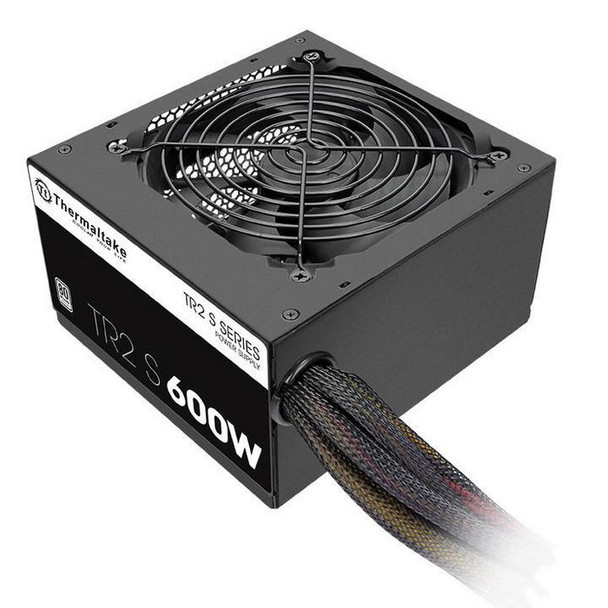

ThermalTake PS-TRS-0600NPCWEU-2 TR2 S 600W POWER SUPPLY PS-TRS-0600NPCWEU-2

Thermaltake TR2 S 600W
Incorporating various high-quality components, the new TR2 S Series � models are rated from 500W to 700W � saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 600W connector�s specification as below:
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS� 230V Standard Certified.

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.

Design



Cooling type



Active


Fan diameter



12 cm


Fan location



Top


Number of fans



1 fan(s)


Product colour



Black


Operational conditions



Operating relative humidity (H-H)



20 - 85 %


Operating temperature (T-T)



5 - 40 �C


Storage relative humidity (H-H)



10 - 95 %


Storage temperature (T-T)



-40 - 50 �C


Other features



Harmonized System (HS) code



84733020


Package dimensions



Gross Weight (Package, kg)



1.96 kg


Performance



80 PLUS certification



80 PLUS


ATX version



2.3


Certification



CE/CB/TUV


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



Cabling type



Modular


Floppy disk drive connector



Yes


Motherboard power connector



20+4 pin ATX


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power connectors (4-pin)



4


Power



AC input frequency



50 - 60 Hz


AC input voltage



230 V


Combined power (-12V)



6 Watt


Combined power (+12V)



504 Watt


Combined power (+3.3V)



105 Watt


Combined power (+5V)



105 Watt


Combined power (+5Vsb)



12.5 Watt


Efficiency



86 %


Hold time



16 Millisecond


Input current



8 A


Max output current (-12V)



6 A


Max output current (+12V)



42 A


Max output current (+3.3V)



22 A


Max output current (+5V)



17 A


Max output current (+5Vsb)



12.5 A


Power Factor Correction (PFC) type



Active


Power Good signal delay range



100 - 500 Millisecond


Total power



600 Watt


Product dimensions



Net Weight (Product, kg)



0.49 kg


Product Depth



14 cm


Product Height



15 cm


Product Width



8.6 cm


Vendor information



Brand Name


ThermalTake


Warranty



1 Year(s)
