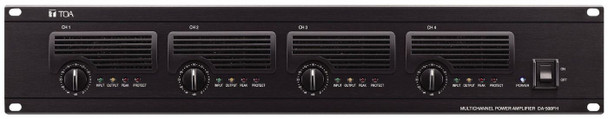

TOA DA-500FH DA-500FH audio amplifier 4.0 DA-500FH

The DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W 4 channels (20 output) using a switching power supply. Each channel is equipped with an independent power section. It can be electrically isolated from the high-impedance speaker system by attaching the MT-251H Output Transformer (optional). Its Control/Monitor terminals permit power ON/OFF control of the individual channels and status monitoring for the power ON/OFF on each channel, protection on each channel, and fan operation. Prepare the control panel or status monitor display panel separately. It can be mounted in an EIA Standard equipment rack (2 unit size).

Audio



Amplifier class



D


Audio output channels



4.0 channels


Damping factor



240


Frequency range



50 - 20000 Hz


Input impedance



10000 ?


Peak power per channel



500 Watt


RMS rated power



2000 Watt


Signal-to-Noise Ratio (SNR)



100 dB


Total Harmonic Distortion (THD)



0.3 %


Display



Built-in display



No


Indication



LED indicators



Power, Status


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



-10 - 40 �C


Package dimensions



Depth (package,cm)



15 cm


Gross Weight (Package, kg)



11.7 kg


Height (package,cm)



58 cm


Width (package,cm)



60 cm


Ports & interfaces



Speakers connectivity type



Binding post


Power



AC input frequency



50 - 60 Hz


AC input voltage



220 - 240 V


Product dimensions



Net Weight (Product, kg)



11.7 kg


Product Depth



15 cm


Product Height



58 cm


Product Width



60 cm


Technical details



Channels quantity



4 channels


Connectivity technology



Wired


Cooling type



Active


Gain adjustment



Rotary


Product colour



Black


Purpose



Performance/stage


Rack capacity



2U


Vendor information



Brand Name


TOA


Warranty



1 Year(s)
