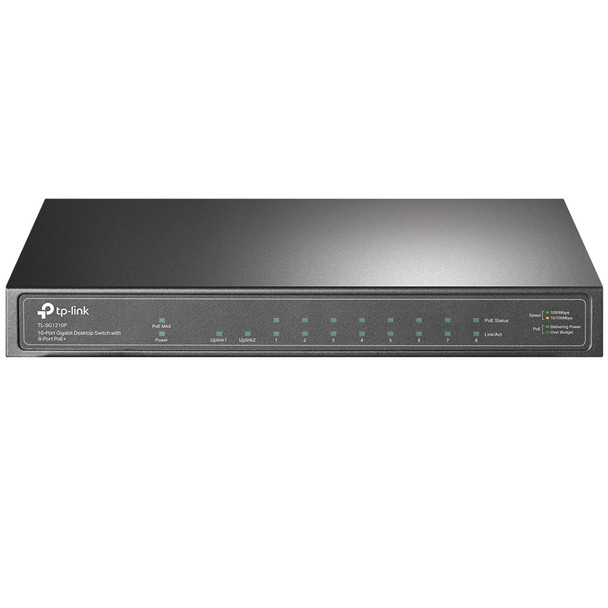

TP-Link 10-Port Gigabit Desktop Switch with 8-Port PoE+ Unmanaged Gigabit Ethern TL-SG1210P

PoE Switches for Your Ultra Convenience

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port's power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Features


9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port


With 8 PoE+ ports, transfers data and power on one single cable


Working with IEEE 802.3af/at compliant PDs, expands home and office network


802.1p/DSCP QoS enable smooth latency-sensitive traffic


High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports


Easy to use, with no configuration and installation needed



Data transmission


Packet buffer memory

14.88 MB


MAC address table

4000 entries


Store-and-forward

Yes


Switching capacity

20 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet plus (PoE+) ports quantity

8


Total Power over Ethernet (PoE) budget

63 W


Power over Ethernet (PoE)

Yes



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

9


SFP module slots quantity

1


Gigabit Ethernet (copper) ports quantity

9



Security


IGMP snooping

Yes



Management features


Quality of Service (QoS) support

Yes


Switch type

Unmanaged



Design


Product colour

Grey


Housing material

Metal


Certification

CE, FCC, RoHS


LED indicators

Yes



Weight & dimensions


Height

26 mm


Width

209 mm


Depth

126 mm



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x


Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T


Auto-negotiation

Yes


10G support

No


Auto MDI/MDI-X

Yes


MAC address auto-learning supported

Yes


MAC address auto-aging supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 50 �C


Heat dissipation

266.42 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Fanless

Yes



Power


Power supply included

Yes


Input current

1.31 A


Power source

DC


DC input voltage

53.5 V


Power consumption (max)

78.13 W



Optical fiber


Fiber ethernet cabling technology

1000BASE-X


Fiber type

Single-mode



Packaging data


Package height

70 mm


Package depth

315 mm


Quick start guide

Yes


Package width

240 mm


Package weight

1.24 kg


Manual

Yes
