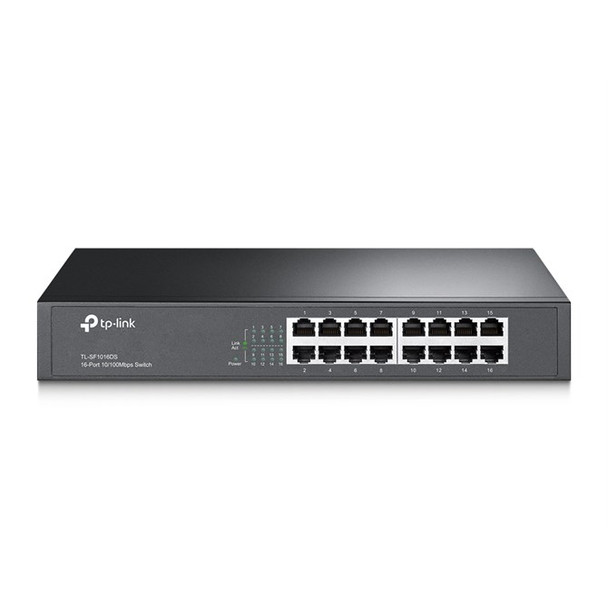

TP-Link 16-Port 10/100Mbps Desktop/Rackmount Network Switch Unmanaged Fast Ether TL-SF1016DS

What This Product Does
The TL-SF1016DS Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save up to 25%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

TP-LINK Green Technology
This new generation The TL-SF1016DS Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features


16 10/100M RJ45 ports


Innovative energy-efficient technology saves power up to 75%


Supports MAC address self-learning and auto MDI/MDIX


Standard 13-inch steel case



Protocols


Supported network protocols

CSMA/CD, TCP/IP



Data transmission


Packet buffer memory

2 MB


Forwarding rate

2.38 Mpps


Jumbo frames

2000


Maximum data transfer rate

0.1 Gbit/s


MAC address table

8000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Supported data transfer rates

10/100 Mbps


Switching capacity

3.2 Gbit/s



Other features


Wi-Fi

No


Connectivity technology

Wired


Dimensions (WxDxH)

294 x 180 x 44 mm


Power requirements

100 - 240VAC, 50/60Hz



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)


Basic switching RJ-45 Ethernet ports quantity

16



Security


MAC address filtering

Yes



Management features


Switch type

Unmanaged



Design


Product colour

Black


Rack mounting

Yes


Certification

FCC, CE, RoHS


LED indicators

Link, Power



Weight & dimensions


Height

44 mm


Width

294 mm


Depth

180 mm



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Flow control support

Yes


Copper ethernet cabling technology

10BASE-T, 100BASE-TX


Half duplex

Yes


Auto-negotiation

Yes


Full duplex

Yes


Auto MDI/MDI-X

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

2.06 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Power


AC input voltage

100 - 240 V


AC input frequency

50 - 60 Hz


Power supply included

Yes


Power source

AC


Power consumption (max)

2.06 W



Packaging data


Package height

80 mm


Package depth

250 mm


Package width

400 mm
