Tp-Link

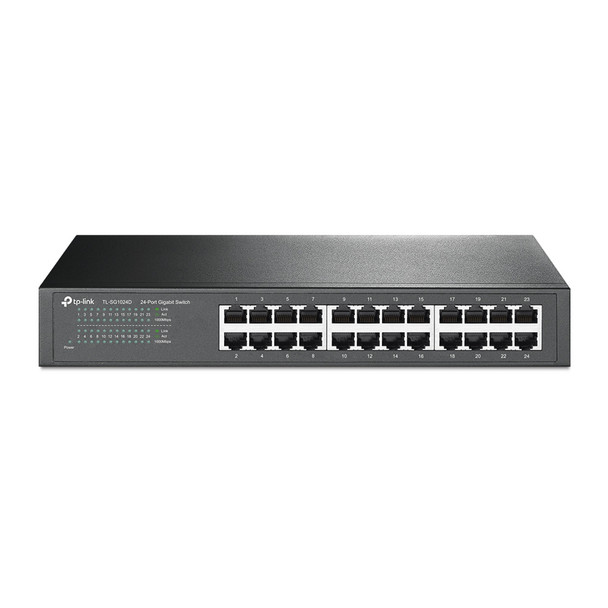

TP-Link 24-Port Gigabit Desktop/Rackmount Network Switch Unmanaged Gigabit Ether TL-SG1024D
(No reviews yet)
Write a Review
- UPC:
- 6935364020620
- MPN:
- TL-SG1024D
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
What This Product Does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra-ffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
24 10/100/1000Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
Protocols
Supported network protocols
CSMA/CD, TCP/IP
Data transmission
Forwarding rate
35.7 Mpps
Jumbo frames
000
Maximum data transfer rate
1 Gbit/s
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Supported data transfer rates
/100/100 Mbps
Switching capacity
48 Gbit/s
Other features
Connectivity LEDs
Y
Bandwidth
48 Gbit/s
Networking features
Gigabit Ethernet
Connectivity technology
Wired
Dimensions (WxDxH)
294 x 180 x 44 mm
Power requirements
0 - 240V, 50/60Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power connector
DC-in jack
Gigabit Ethernet (copper) ports quantity
24
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Design
Stackable
Yes
Product colour
Grey
Rack mounting
Yes
Certification
FCC, CE, RoHS
LED indicators
Yes
Weight & dimensions
Height
44 mm
Width
294 mm
Depth
0 mm
Logistics data
Harmonized System (HS) code
85176990
Network
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto-negotiation
Yes
G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
Operational conditions
Operating temperature (T-T)
32 - 104 -F
Heat dissipation
46.44 BTU/h
Operating relative humidity (H-H)
- 90
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-40 - 70 -C
Power
AC input voltage
0 - 240 V
AC input frequency
50 - 60 Hz
Power supply included
Yes
Power source
AC
Power consumption (max)
.62 W
Packaging data
Package height
80 mm
Cables included
AC
Package depth
400 mm
Package width
250 mm
Package type
Box
Rack mount kit
Yes
Package weight
1.95 kg
User guide
Yes
View AllClose
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra-ffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
24 10/100/1000Mbps ports
Innovative energy-efficient technology saves power consumption
Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
Plug & play design
Protocols
Supported network protocols
CSMA/CD, TCP/IP
Data transmission
Forwarding rate
35.7 Mpps
Jumbo frames
000
Maximum data transfer rate
1 Gbit/s
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Supported data transfer rates
/100/100 Mbps
Switching capacity
48 Gbit/s
Other features
Connectivity LEDs
Y
Bandwidth
48 Gbit/s
Networking features
Gigabit Ethernet
Connectivity technology
Wired
Dimensions (WxDxH)
294 x 180 x 44 mm
Power requirements
0 - 240V, 50/60Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
Ports & interfaces
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
24
Power connector
DC-in jack
Gigabit Ethernet (copper) ports quantity
24
Management features
Quality of Service (QoS) support
Yes
Switch type
Unmanaged
Design
Stackable
Yes
Product colour
Grey
Rack mounting
Yes
Certification
FCC, CE, RoHS
LED indicators
Yes
Weight & dimensions
Height
44 mm
Width
294 mm
Depth
0 mm
Logistics data
Harmonized System (HS) code
85176990
Network
Networking standards
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Cable types supported
Cat3, Cat4, Cat5, Cat5e
Flow control support
Yes
Auto-negotiation
Yes
G support
No
Full duplex
Yes
Auto MDI/MDI-X
Yes
Operational conditions
Operating temperature (T-T)
32 - 104 -F
Heat dissipation
46.44 BTU/h
Operating relative humidity (H-H)
- 90
Storage relative humidity (H-H)
5 - 90
Storage temperature (T-T)
-40 - 70 -C
Power
AC input voltage
0 - 240 V
AC input frequency
50 - 60 Hz
Power supply included
Yes
Power source
AC
Power consumption (max)
.62 W
Packaging data
Package height
80 mm
Cables included
AC
Package depth
400 mm
Package width
250 mm
Package type
Box
Rack mount kit
Yes
Package weight
1.95 kg
User guide
Yes
Additional Information
Shipping: |
Usually shipped within 3-5 working days |
Delivery: |
Usually delivered within 5-7 working days |
