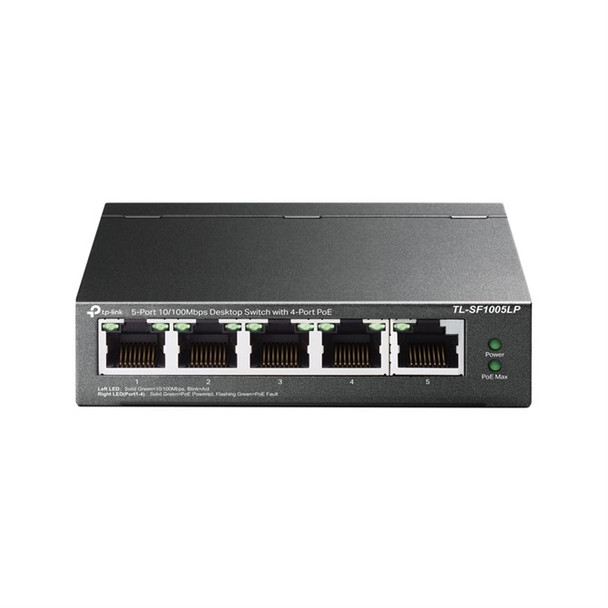

TP-Link 5-Port 10/100Mbps Desktop Switch with 4-Port PoE TL-SF1005LP

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

TL-SF1005LP

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4� PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance
-Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.

The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Features


5� 10/100 Mbps RJ45 ports


4� PoE ports transfer data and power on individual cables


Works with IEEE 802.3af compliant PDs


Up to 250 m data and power transmitting range under Extend Mode**


Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application


Supports PoE Power up to 41 W for all PoE ports*


Plug and play with no configuration required



Data transmission


Forwarding rate

0.744 Mpps


Jumbo frames

2000


MAC address table

2000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Switching capacity

1 Gbit/s



Power over Ethernet (PoE)


Total Power over Ethernet (PoE) budget

41 W


Power over Ethernet (PoE)

Yes


Power over Ethernet (PoE) ports quantity

4



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Fast Ethernet (10/100)


Basic switching RJ-45 Ethernet ports quantity

5



Management features


Switch type

Unmanaged



Design


Product colour

Black


Rack mounting

No


LED indicators

Yes



Weight & dimensions


Height

25 mm


Width

100 mm


Depth

98 mm



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Network


Networking standards

IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Cable types supported

Cat3, Cat4, Cat5, Cat5e


Flow control support

Yes


Copper ethernet cabling technology

10BASE-T, 100BASE-TX


Half duplex

Yes


Auto-negotiation

Yes


10G support

No


Full duplex

Yes


Auto MDI/MDI-X

Yes


MAC address auto-aging supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

160.27 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Fanless

Yes



Power


AC input voltage

220 V


Input voltage

53.5 V


AC input frequency

50 Hz


Power supply included

Yes


Input current

0.81 A


Power source

DC/PoE


Power consumption (max)

47 W



Packaging data


Package height

121 mm


Package depth

196 mm


Package width

131 mm


Package weight

740 g


AC adapter included

Yes


User guide

Yes
