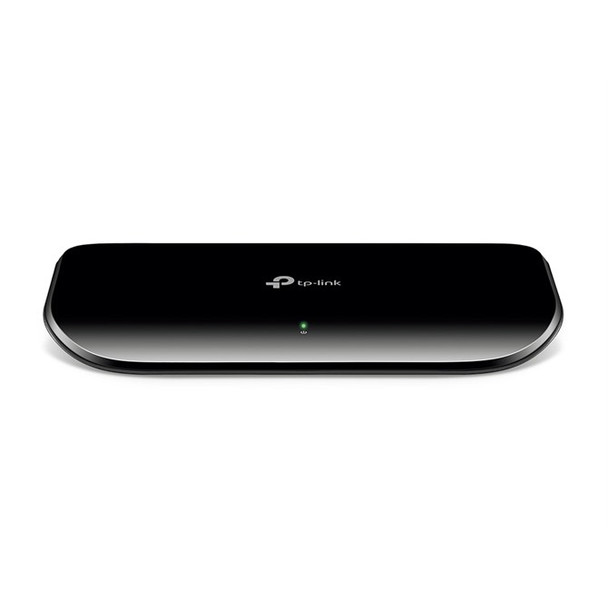

TP-Link 8-Port Gigabit Desktop Network Switch TL-SG1008D

The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features


8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX


Green Ethernet technology saves the power up to 80%


IEEE 802.3x flow control provides reliable data transfer


Plastic case, desktop or wall-mounting design


Plug and play, no configuration required



Data transmission


Packet buffer memory

2 MB


Jumbo frames

15000


MAC address table

4000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Switching capacity

16 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8


Power connector

DC-in jack


Gigabit Ethernet (copper) ports quantity

8



Management features


Switch type

Unmanaged



Design


Stackable

No


Product colour

Black


Wall mountable

Yes


Rack mounting

No


LED indicators

Yes



Weight & dimensions


Height

25.5 mm


Width

180 mm


Depth

90 mm



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Network


Networking standards

IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Cable types supported

Cat3, Cat4, Cat5, Cat5e


Flow control support

Yes


Copper ethernet cabling technology

10BASE-T, 100BASE-TX, 1000BASE-T


Auto-negotiation

Yes


10G support

No


Auto MDI/MDI-X

Yes


Ethernet LAN data rates

10,100,480,800,1000 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Heat dissipation

15.8 BTU/h


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Fanless

Yes


Maximum cable length

100 m



Power


AC input voltage

100 - 240 V


AC input frequency

50/60 Hz


Power supply included

Yes


Input current

0.6 A


Power source

DC


DC input voltage

9 V


Power consumption (max)

3.53 W



Packaging data


Package height

85 mm


Cables included

AC


Package depth

185 mm


Package width

110 mm


Package type

Box


Package weight

300 g


AC adapter included

Yes


User guide

Yes
