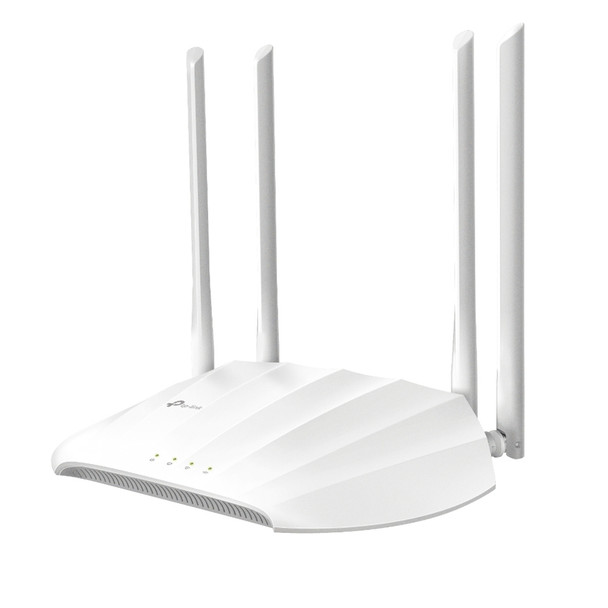

TP-Link AC1200 Wireless Access Point 867 Mbit/s 300 Mbit/s 867 Mbit/s 101001000 TL-WA1201

TP-Link AC1200 Wireless Access Point. Maximum data transfer rate: 867 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Service Set Identifier (SSID) features: Multiple SSIDs, Device type identification: DHCP options. Supported network protocols: IPv4, IPv6. WAN connection: Ethernet (RJ-45). Output voltage: 12 V, Output current: 1.5 A

Features


AC1200 Dual-Band Wi-Fi - 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band


Flexible Deployment - Supports Passive PoE to carry electrical power and data simultaneously


Multiple Modes - Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs


MU-MIMO Technology - Simultaneously transfers data to multiple devices for 2× faster performance


Boosted Coverage - Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals


Captive Portal - Offers a designed portal page for heightened security and marketing



Protocols


DHCP client

Yes


Supported network protocols

IPv4, IPv6


DHCP server

Yes



Security


Access Control List (ACL)

Yes


Security algorithms

64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK


Auto Wireless Distribution System (WDS)

Yes


Device type identification

DHCP options


Service Set Identifier (SSID) features

Multiple SSIDs



Ports & interfaces


WAN connection

Ethernet (RJ-45)


Ethernet LAN (RJ-45) ports

1


DC-in jack

Yes



Management features


Web-based management

Yes


Firmware upgradeable

Yes



Design


WPS push button

Yes


Reset button

Yes


Placement

Table


Product colour

White


On/off switch

Yes


Certification

CE, FCC, RoHS


LED indicators

Yes



Weight & dimensions


Height

37 mm


Width

225 mm


Depth
5.5 mm



Packaging content


Number of products included

1 pc(s)



Features


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Maximum data transfer rate (2?4 GHz)

300 Mbit/s


6 GHz

No


Wi-Fi Multimedia (WMM)/(WME)

Yes


Maximum data transfer rate

867 Mbit/s


MIMO type

Multi User MIMO


Transmitting power (CE)

<20dBm(2.4GHz), <23dBm(5.15GHz
5.25GHz)


Transmitting power (FCC)

<30dBm(2.4GHz&5GHz)


5 GHz

Yes


Maximum data transfer rate (5 GHz)

867 Mbit/s


Quality of Service (QoS) support

Yes


MIMO

Yes


Cabling technology
/100/1000Base-T(X)


2?4 GHz

Yes


Ethernet LAN data rates
,100,1000 Mbit/s


Fit AP mode features

Wireless distribution system (WDS)



Operational conditions


Operating temperature (T-T)

0 - 40 °C


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 °C



Performance


Compatible operating systems

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux



Power


Output voltage
V


Power over Ethernet (PoE)

Yes


Output current

1.5 A



Antenna


Antenna type

External


Antennas quantity

4



Packaging data


Package height

69 mm


Package depth

255 mm


Package width

400 mm


Package type

Box


Package weight

860 g
