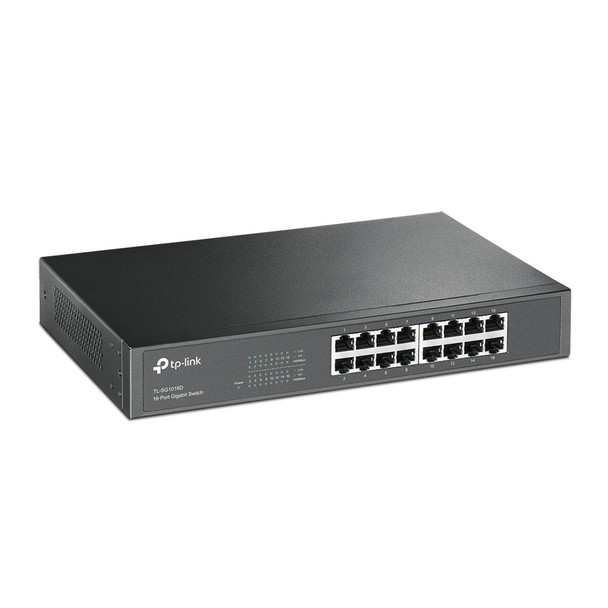

TP-Link AC750 AC750 16 Port L2 Unmanaged Non-POE Network Switch TL-SG1016D

What This Product Does
The TL-SG1016D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1016D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Features

10/100/1000Mbps ports


Innovative energy-efficient technology saves power consumption


Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation


Plug & play design



Protocols


Supported network protocols

CSMA/CD, TCP/IP



Data transmission


Forwarding rate

23.8 Mpps


Jumbo frames
000


MAC address table

8000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Switching capacity

32 Gbit/s



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity



Power connector

AC-in jack


Gigabit Ethernet (copper) ports quantity




Management features


Switch type

Unmanaged



Design


Stackable

Yes


Product colour

Black


Rack mounting

Yes


LED indicators

Yes



Weight & dimensions


Height

44 mm


Width

294 mm


Depth
0 mm



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Network


Networking standards

IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x


Cable types supported

Cat3, Cat4, Cat5, Cat5e


Flow control support

Yes


Copper ethernet cabling technology
BASE-T, 100BASE-TX, 1000BASE-TX, 1000BASE-T


Auto-negotiation

Yes

G support

No


Full duplex

Yes


Auto MDI/MDI-X

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 °C


Heat dissipation

31.6 BTU/h


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 °C



Performance


Fanless

Yes


Maximum cable length
0 m


Compatible operating systems

Microsoft Windows 2000/XP/2003/Vista/2008/7/2012/8/10 MacOS NetWare UNIX Linux



Power


AC input voltage
0 - 240 V


AC input frequency

50/60 Hz


Power supply included

Yes


Power source

AC


Power consumption (max)

9.26 W



Packaging data


Package height

80 mm


Cables included

AC


Package depth

400 mm


Package width

250 mm


Package type

Box


Rack mount kit

Yes


Package weight

1.85 kg


User guide

Yes
