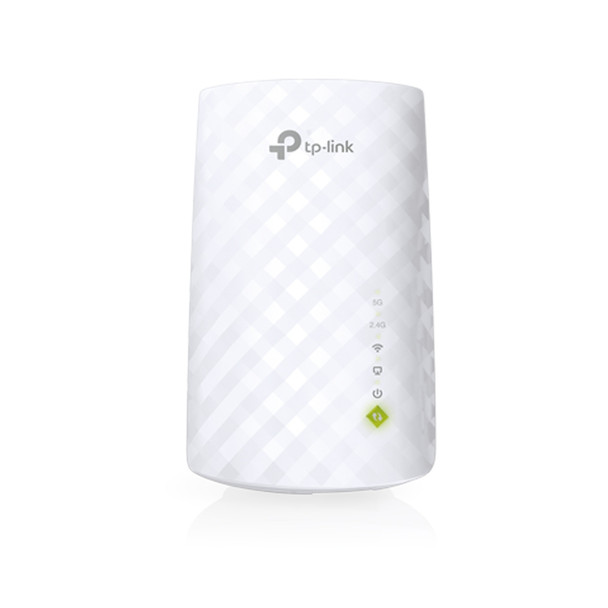

TP-LINK AC750 WiFi Range Extender RE200 RE200

Boost Your Router Coverage to Expanded Dual Band WiFi
RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.
Next Generation 11AC WiFi

Create faster access for 802.11 b/g/n and 802.11ac WiFi devices. RE200 delivers fast speeds of dual band WiFi up to 750Mbps and provides reliable connections for laptops, smartphones, tablets and other wireless-enabled devices.

Enjoy Super Speeds in High Speed Mode
With High-Speed technology, RE200 makes the best use of both WiFi bands to establish super speedy connections - ideal for HD video streaming, online gaming and other bandwidth-intensive tasks.

Easy Setup and Flexible Placement
Press the WPS button on your router and the Range Extender button on your RE200 within 2 minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the RE200 back in anywhere within the wireless range of the existing router, without needing to configure the extender again.

Entertainment Adapter
The RE200's single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray� players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

Features


Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly


Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices


Dual band speeds up to 750Mbps


Miniature size and wall-mounted design make it easy to deploy and move flexibly


Ethernet port allows the Extender to function as a wireless adapter to connect wired devices


Works with any Wi-Fi router or wireless access point



Design


Reset button

Yes


Product colour

White



Weight & dimensions


Height

75.2 mm


Width

110 mm


Depth

65.8 mm



Packaging content


Cables included

LAN (RJ-45)


Quick start guide

Yes



Technical details


Sustainability certificates

RoHS



Network


Networking standards

IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Wi-Fi data rate (max)

433 Mbit/s


Wi-Fi standards

802.11b, 802.11g, Wi-Fi 4 (802.11n)


Security algorithms

128-bit WEP, 152-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK


Wi-Fi

Yes


Wi-Fi Multimedia (WMM)/(WME)

Yes


Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)


Cabling technology

10/100Base-T(X)



Other features


Operating temperature (T-T)

32 - 104 �F



Operational conditions


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Data transfer rate

750 Mbit/s


Type

Network repeater


Mac operating systems supported

Yes


Linux operating systems supported

Yes


Ethernet LAN data rates

10,100 Mbit/s



Ports & interfaces


Ethernet LAN (RJ-45) ports

1



Power


Power consumption (typical)

6.5 W



Antenna


Antennas quantity

3


Antenna type

Internal



Packaging data


Package height

89 mm


Package depth

101.5 mm


Package width

156.5 mm


Package weight

200 g
