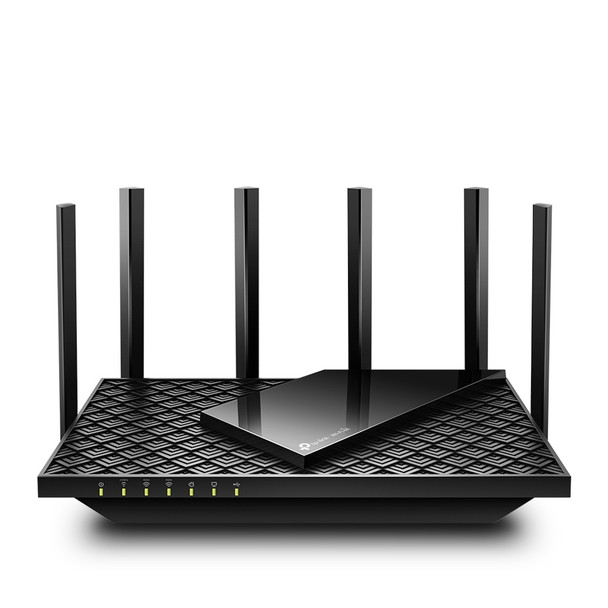

TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router Wi-Fi 6E 802.11ax Tri-ba ARCHER AXE75

Reaching New
Peaks of Performance

WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.

Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.

More RAM, Better Processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.

Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.

WiFi Coverage Throughout Your Home
6� high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.

USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.

TP-Link OneMesh
Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching for a stable connection.

TP-Link HomeShield
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.

WPA3: Stronger Security for Your Network
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.

Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link's powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.

New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It's as simple as that.

Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

Features


AXE5400 Tri-Band - AXE5400 Tri-Band Wi-Fi delivers Wi-Fi speeds up to 5400 Mbps


Cutting-Edge Processing - Armed with a 1.7 GHz Quad-Core CPU


SuperSpeed USB 3.0 - Up to 10� faster transfer speeds than USB 2.0


Wi-Fi 6E Unleashed - The brand new 6 GHz band brings more bandwidth, faster speeds, and near-zero latency


HomeShield - Customize your home network with enhanced security and control


OneMesh� - Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage


Connect More Devices-OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices


Ultra-Low Latency-Enables more responsive gaming and video chatting


Compatible with Alexa-Control your router via voice commands and make your life smarter and easier with Amazon Alexa



Protocols


DHCP client

Yes


Supported network protocols

IPv4, IPv6


DHCP server

Yes


Universal Plug and Play (UPnP)

Yes



WAN connection


SIM card slot

No


WAN connection type

RJ-45


DSL WAN

No


3G/4G USB modem compatibility

No


Ethernet WAN

Yes



Ports & interfaces


USB 3?2 Gen 1 (3?1 Gen 1) Type-A ports quantity

1


Ethernet LAN (RJ-45) ports

5


USB port

Yes



Security


Access Control List (ACL)

Yes


Security algorithms

WPA, WPA-Enterprise, WPA2, WPA3


DoS attack prevention

Yes


MAC address filtering

Yes


Guest access

Yes


DDoS protection

Yes


IP address filtering

Yes


Firewall security

SPI Firewall


URL filtering

Yes


Network address translation (NAT)

Yes


DMZ support

Yes


Firewall

Yes



Management features


Wake-on-LAN ready

Yes


Web-based management

Yes


WPS push button

Yes


Reset button

Yes


Quality of Service (QoS) support

Yes


Wireless statistics

Yes



Design


Product colour

Black


Product type

Tabletop router


Wall mountable

Yes


On/off switch

Yes


LED indicators

Power, WAN, WLAN



Weight & dimensions


Height

49.2 mm


Width

272.5 mm


Depth

147.2 mm



Packaging content


Cables included

LAN (RJ-45)


Quick installation guide

Yes


AC adapter included

Yes



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability compliance

Yes


Sustainability certificates

Federal Communications Commission (FCC), RoHS



Network


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n


Dynamic DNS (DDNS)

Yes


Port triggering

Yes


Ethernet LAN

Yes


Number of guest networks (5 GHz)

1


Support Samba (storage)

Yes


Number of guest networks (2?4 GHz)

1


VPN Passthrough

Yes


Media server

Yes


VPN support

OpenVPN Server PPTP VPN Server L2TP VPN Server


Ethernet LAN interface type

Gigabit Ethernet


Cabling technology

10/100/1000Base-T(X)


Port forwarding

Yes


Built-in FTP server

Yes


VPN server

OpenVPN Server


Static route

No


Ethernet LAN data rates

2500 Mbit/s



Features


Built-in processor

Yes


Processor frequency

1700 MHz


Firmware upgradeable

Yes


Processor cores

4



Wireless LAN features


Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)


Top Wi-Fi standard

Wi-Fi 6E (802.11ax)


WLAN data transfer rate (third band)

2402 Mbit/s


Wi-Fi band

Tri-band (2.4 GHz / 5 GHz / 6 GHz)


WLAN data transfer rate (second band)

2402 Mbit/s


WLAN data transfer rate (first band)

574 Mbit/s


WLAN data transfer rate (max)

5400 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90



Power


Output voltage

12 V


Power source type

DC


Output current

2.5 A



Antenna


Detachable antenna(s)

Yes


Antennas quantity

6


Antenna design

External


Transmit power

FCC: ?29dBm (2.4 GHz), ?28dBm (5 GHz), ?22dBm (6 GHz) CE: ?17dBm (2.4 GHz), ?27dBm (5 GHz), ?20dBm (6 GHz)



Packaging data


Package height

120 mm


Number of products included

1 pc(s)


Package depth

265 mm


Package width

328 mm


Package weight

1.53 kg
