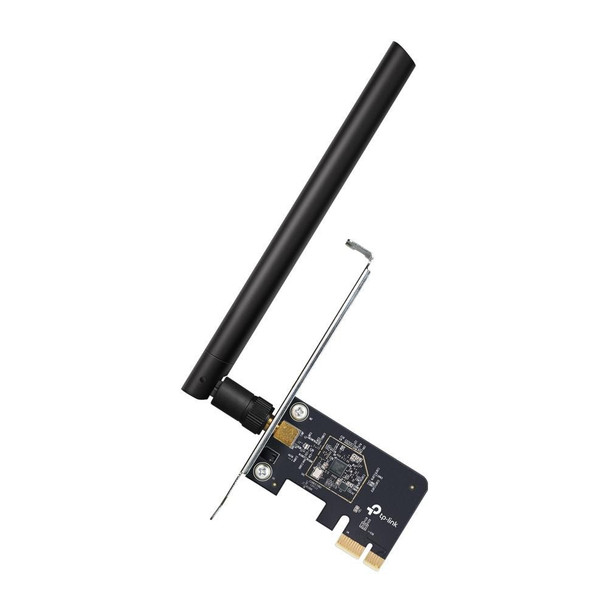

TP-Link ARCHER T2E Internal Wlan 433 Mbit/S ARCHER T2E

Upgrade Your Desktop with Advanced AC WiFi
AC600 Wireless Dual Band PCI Express Adapter

WiFi for All Your Online Needs
Archer T2E provides your PC with WiFi capability and receives WiFi signals on two separate bands. It can even work as a WiFi hotspot, sharing internet with other WiFi devices. Choose 2.4 GHz for browsing, email and social media, or switch to 5 GHz for gaming and streaming.

Broader Coverage with High-Gain Antenna
Powerful signal-boosting high-gain antenna significantly extends your existing WiFi reception, allowing you to enjoy fast and uninterrupted 4K streaming and smooth gaming.

Improved Security with WPA3
The latest WiFi security protocols bring new capabilities to improve cybersecurity, safeguarding your home WiFi. It provides more secure and individualized encryption for personal password safety and enhanced protection against brute-force attacks.

Adjustable,
Multi-Directional Antenna
Adjust the antenna to the perfect position to suit any
environment. Replace the detachable antenna with a
diverse range of indoor or directional antennae to
further enhance your wireless coverage.

Flexible Design, Easy Setup
Standard and low profile brackets let you find the optimal bracket for your tower. With 3 simple steps, enjoy fast WiFi after a quick, hassle-free installation.

Design



Antenna



Yes


Antenna design



External


Certification



FCC, CE, RoHS


Component for



PC


Internal



Yes


Operating modes



Infrastructure mode


Product colour



Black, Silver


Receiver sensitivity



5GHz: 11ac HT80:-59.0dBm 11n HT40:-68.0dBm 11a 54Mbps:-73.0dBm 11a 6Mbps:-90.0dBm 2.4GHz: 11n HT40:-70dBm 11g 54Mbps:-75dBm 11b 11Mbps:-87dBm


Transmitting power (CE)



23 dBm


Transmitting power (FCC)



18 dBm


Logistics data



Harmonized System (HS) code



85176990


Network



Maximum data transfer rate



433 Mbit/s


Modulation



16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM


Networking standards



IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Security algorithms



WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3


Top Wi-Fi standard



Wi-Fi 5 (802.11ac)


Wi-Fi



Yes


Wi-Fi band



Dual-band (2.4 GHz / 5 GHz)


Wi-Fi standards



802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)


WLAN data transfer rates supported



11, 54, 200, 433


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Package dimensions



Depth (package,cm)



15.25 cm


Gross Weight (Package, kg)



0.25 kg


Height (package,cm)



4.15 cm


Width (package,cm)



20.15 cm


Packaging content



Mounting brackets included



Yes


Quick installation guide



Yes


Resource CD



Yes


Ports & interfaces



Connectivity technology



Wireless


Host interface



PCI Express


Interface



WLAN


Product dimensions



Net Weight (Product, kg)



0.19 kg


Product Depth



7.85 cm


Product Height



2.15 cm


Product Width



12.08 cm


Sustainability



Sustainability certificates



RoHS, Federal Communications Commission (FCC), CE


Sustainability compliance



Yes


System requirements



Windows operating systems supported



Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
