Tp-Link
TP-Link ARCHER TX20E Ax1800 Wi-Fi 6 Bluetooth 5.2 ARCHER TX20E
- UPC:
- 4897098688809
- MPN:
- ARCHER TX20E
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Easily Get Start with Wi-Fi 6

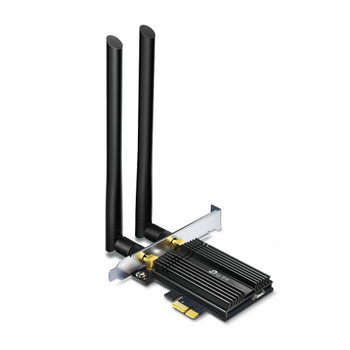

AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
Design
Antenna
Yes
Antenna design
External
Component for
PC/Server
Internal
Yes
Operating modes
Infrastructure mode
Plug and Play
Yes
Product colour
Black
Transmitting power (CE)
23 dBm
Transmitting power (FCC)
27 dBm
Network
Bluetooth
Yes
Bluetooth version
5.2
Maximum data transfer rate
1800 Mbit/s
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported
11, 54, 300, 574, 867, 1200
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Package dimensions
Depth (package,cm)
15.25 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
4.15 cm
Width (package,cm)
20.15 cm
Packaging content
Bluetooth header cable
Yes
Manual
Yes
Mounting brackets included
Yes
Quick installation guide
Yes
Resource CD
Yes
Ports & interfaces
Connectivity technology
Wireless
Host interface
PCI Express
Interface
WLAN / Bluetooth
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
7.85 cm
Product Height
2.09 cm
Product Width
12.08 cm
Sustainability
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance
Yes
System requirements
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Vendor information
Brand Name
TP-Link
Warranty
1 Year(s)
View AllClose
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
Design
Antenna
Yes
Antenna design
External
Component for
PC/Server
Internal
Yes
Operating modes
Infrastructure mode
Plug and Play
Yes
Product colour
Black
Transmitting power (CE)
23 dBm
Transmitting power (FCC)
27 dBm
Network
Bluetooth
Yes
Bluetooth version
5.2
Maximum data transfer rate
1800 Mbit/s
Modulation
16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported
11, 54, 300, 574, 867, 1200
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 °C
Package dimensions
Depth (package,cm)
15.25 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
4.15 cm
Width (package,cm)
20.15 cm
Packaging content
Bluetooth header cable
Yes
Manual
Yes
Mounting brackets included
Yes
Quick installation guide
Yes
Resource CD
Yes
Ports & interfaces
Connectivity technology
Wireless
Host interface
PCI Express
Interface
WLAN / Bluetooth
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
7.85 cm
Product Height
2.09 cm
Product Width
12.08 cm
Sustainability
Sustainability certificates
CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance
Yes
System requirements
Windows operating systems supported
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64
Vendor information
Brand Name
TP-Link
Warranty
1 Year(s)
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
