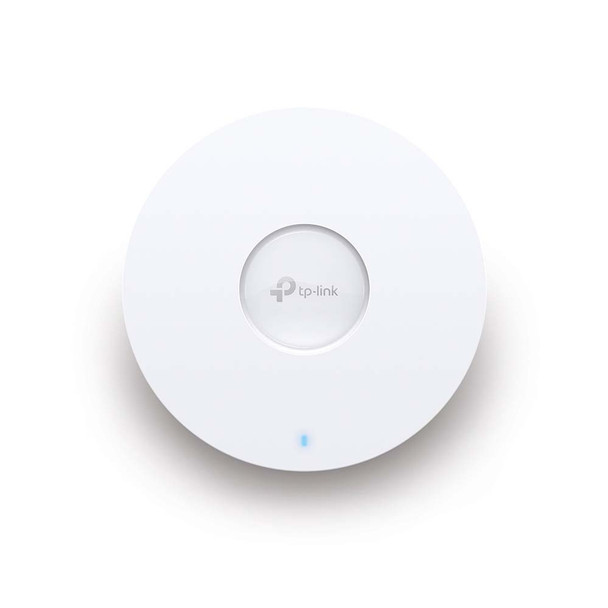

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point EAP610

Easily Upgrade to Business WiFi 6 Network
AX1800 Ceiling Mount WiFi 6 Access Point

AX1800 WiFi 6 Speed
574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz

High-Efficiency WiFi 6
More connected devices can enjoy faster speeds

Centralized Cloud Management
Manage the whole network locally or from the cloud�

Seamless Roaming
Uninterrupted streaming when moving between APs

Omada Mesh Technology
More flexible and convenient wireless deployment

PoE+ Powered
Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations

Ultra-Slim Design
?160 mm � 33.6 mm elegant design brings more agility

Gigabit Wired Performance
Boosts overall throughput with a Gigabit Ethernet port

Optimized WiFi Performance
With Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load Balance

Upgrade to WiFi 6, Power up Your Business
WiFi 6 brings faster speeds, less lag, and higher capacity.

Superior WiFi 6 Speeds
Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.� Every application feels more fluid with drastically improved Wi-Fi speeds.

Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.

Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

Always Stay Smooth with Fast Roaming
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.

Ultra-Slim Design Brings More Agility
Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP610 perfectly blend into any modern office, hotel, classroom, or caf�.

Secure Guest Network with Up to 16 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

Guest Network with Facebook Wi-Fi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.

WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness
Increases average network throughput in heavily congested environments

Features


Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds


High-Efficiency WiFi 6: More connected devices can enjoy faster speeds


Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app


Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations


Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment


PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations


Ultra-Slim Design: ?160 mm � 33.6 mm elegant design brings more agility


Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies



Design


Reset button

Yes


Placement

Ceiling, Wall


Product colour

White


Certification

CE, FCC, RoHS


LED indicators

Yes



Weight & dimensions


Height

33.6 mm


Width

160 mm


Depth

160 mm



Packaging content


Number of products included

1 pc(s)



Features


Automatic channel selection

Yes


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Virtual LAN features

SSID-based VLAN assignment


Maximum data transfer rate (2?4 GHz)

574 Mbit/s


Maximum data transfer rate

1800 Mbit/s


Airtime Fairness (ATF)

Yes


Automatic channel scanning

Yes


Band steering

Yes


MIMO type

Multi User MIMO


Adaptive bandwidth management

Yes


Transmitting power (CE)

<20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP); <25 dBm (5 GHz band3)


Transmitting power (FCC)

<25 dBm (2.4 GHz); <25 dBm (5 GHz)


5 GHz

Yes


Frequency band

2.4 - 5 GHz


Maximum data transfer rate (5 GHz)

1201 Mbit/s


Spread spectrum method

OFDMA


MIMO

Yes


Rate limiting

Yes


2?4 GHz

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Operational conditions


Operating temperature (T-T)

10 - 90 �C


Operating relative humidity (H-H)

0 - 40


Storage relative humidity (H-H)

5 - 95


Storage temperature (T-T)

-40 - 70 �C



Security


Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3


Number of SSID supported

16



Ports & interfaces


Ethernet LAN (RJ-45) ports

1


DC-in jack

Yes



Performance


Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux



Management features


Web-based management

Yes


Management platform

Omada



Power


Power over Ethernet (PoE)

Yes



Antenna


Antenna type

Internal


Antennas quantity

4


Antenna gain level (max)

5 dBi


Antenna direction type

Omni-directional
