TP-Link JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots 8 Port L2/L SG3210

Convenient Gigabit Switch
for a Complete Omada Network

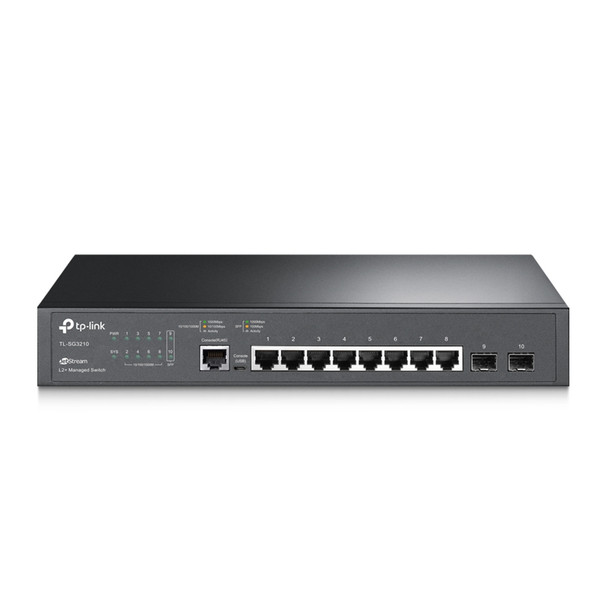

JetStream 8-Port Gigabit L2+ Managed Switch with 2 SFP Slots

Software Defined Networking (SDN) with Cloud Access
Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network-all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features
An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features**
sFlow, QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Features


Full Gigabit Ports: 8� gigabit RJ45 ports and 2� gigabit SFP Slots provide high-speed connections


Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring


Centralized Management: Cloud access and Omada app for ultra convenience and easy management


Static Routing: Helps route internal traffic for more efficient use of network resources


Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more


Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping


Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities



Protocols


GARP VLAN Registration Protocol (GVRP)

Yes


Management protocols

SNMPv1/v2c/v3, SNTP


IPv4 & IPv6 features

IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert



Data transmission


Packet buffer memory

4.1 MB


Forwarding rate

14.9 Mpps


Jumbo frames

9000


MAC address table

8000 entries


Store-and-forward

Yes


Jumbo frames support

Yes


Static route

Yes


Switching capacity

20 Gbit/s


Number of IP interfaces

16



Power over Ethernet (PoE)


Power over Ethernet (PoE)

No



Ports & interfaces


Console port

RJ-45/micro-USB


Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)


Basic switching RJ-45 Ethernet ports quantity

8


SFP module slots quantity

2



Security


DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping


Access Control List (ACL)

Yes


Static port security

Yes


IP-MAC-Port binding

Yes


MAC address filtering

Yes


SSH/SSL support

Yes


Authentication

MAC-based authentication, Port-based authentication


IGMP snooping

Yes


Loop protection

Yes


Authentication type

RADIUS


BPDU filtering/protection

Yes



Management features


System event log

Yes


Web-based management

Yes


MIB support

Yes


Switch layer

L2/L3


Quality of Service (QoS) support

Yes


Cloud-managed

Yes


ARP inspection

Yes


Configuring Location Settings (CLI)

Yes


Switch type

Managed



Multicast features


Multicast support

Yes


Multicast Listener Discovery (MLD) snooping

Y



Design


Product colour

Black


Rack mounting

Yes


Form factor

1U


LED indicators

Yes



Weight & dimensions


Height

44 mm


Width

294 mm


Depth

180 mm



Logistics data


Harmonized System (HS) code

85176990



Network


Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Virtual LAN features

Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN


Link aggregation

Yes


Spanning tree protocol

Yes


10G support

No


Number of VLANs

4000


Head-of-line (HOL) blocking

Yes


Port mirroring

Yes


IPv4 routes

48


Flow control support

Yes


Broadcast storm control

Yes


IPv6 routes

48


VLAN support

Yes


Rate limiting

Yes


IP routing

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Minimum system requirements

Microsoft� Windows� 8, 7,Vista�, XP or MAC� OS, NetWare�, UNIX� or Linux.


Fanless

Yes


Firmware upgradeable

Yes



Power


AC input voltage

100 - 240 V


AC input frequency

50/60 Hz


Power supply included

Yes


Power source

AC


Power consumption (max)

6.84 W



Packaging data


Package height

80 mm


Package depth

250 mm


Quick start guide

Yes


Package width

400 mm


Rack mount kit

Yes


Package weight

1.9 kg


Manual

Yes


User guide

Yes
