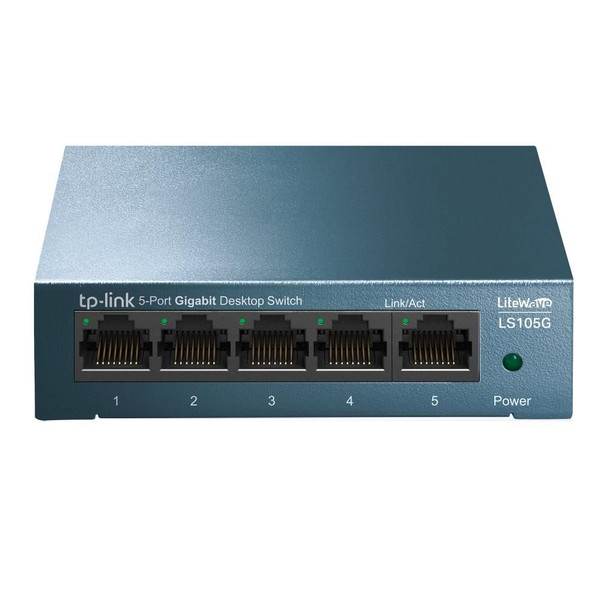

TP-Link LS105G 5-Port 10/100/1000Mbps LS105G

Increase Your Network Speed and Save Energy

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

Data transmission



Forwarding rate



7.4 Mpps


Jumbo frames



16000


Jumbo frames support



Yes


MAC address table



2000 entries


Packet buffer memory



1 MB


Switching capacity



10 Gbit/s


Design



Certification



CE, FCC, RoHS


Housing material



Metal


LED indicators



Activity, LAN, Power


Product colour



Blue


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Networking standards



IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



9.466 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 °C


Package dimensions



Depth (package,cm)



12.5 cm


Gross Weight (Package, kg)



1.3 kg


Height (package,cm)



9.2 cm


Width (package,cm)



12.8 cm


Packaging data



Quick start guide



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



5


Power connector



DC-in jack


Power



Input current



0.6 A


Input voltage



5 V


Power consumption (max)



2.776 Watt


Power source



DC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



9.8 cm


Product Height



2.51 cm


Product Width



9.98 cm


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
