TP-Link Omada 300Mbps Wireless N Outdoor Access Point 300 Mbit/s 300 Mbit/s 1010 EAP110-OUTDOOR

Enjoy Wi-Fi Outside, Finally

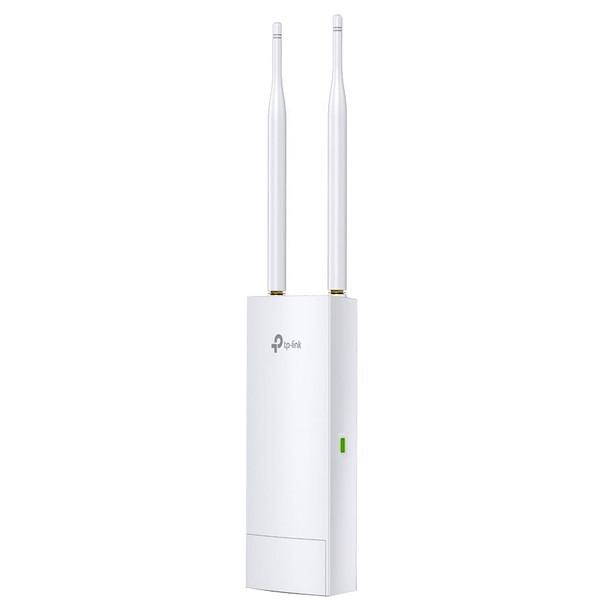

Omada EAP110-Outdoor

Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas
EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications
EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 1.8 1.1in. (215 46 27mm)

Supports Passive PoE for Easy Outdoor Set up
Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

Flexible Deployment
EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

Wi-Fi That Goes the Distance
With high transmission power and two high-gain omnidirectional antennas,
EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.

Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Features


Built for outdoor Wi-Fi applications


Up to 300Mbps Wi-Fi with 2x2 MIMO technology


High transmission power and high gain antennas provide a long-range coverage area


Durable, weatherproof enclosure to withstand fair and foul weather


Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation


Cloud centralized management and Omada app for ultra convenience and easy management


Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies


Supports management vlan for an enhanced network management



Protocols


Management protocols

HTTP/HTTPS, SNMP, Telnet



Security


Access Control List (ACL)

Yes


Security algorithms

WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK


Remote Authentication Dial-In User Service (RADIUS)

Yes


MAC address filtering

Yes


Number of SSID supported

8


Service Set Identifier (SSID) features

Multiple SSIDs



Ports & interfaces


Ethernet LAN (RJ-45) ports

1



Management features


Web-based management

Yes


Syslog

Yes



Design


International Protection (IP) code

IP65


Reset button

Yes


Placement

Pole, Wall


Product colour

White


Certification

CE, FCC, RoHS


LED indicators

Power



Weight & dimensions


Height

27 mm


Width

216 mm


Depth

46 mm



Packaging content


Number of products included

1 pc(s)


Cables included

AC


PoE adapter included

Yes


Antenna included

Yes


Mounting kit

Yes



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Features


Automatic channel selection

Yes


Networking standards

IEEE 802.11b, IEEE 802.11g, IEEE 802.11n


Virtual LAN features

Tagged VLAN, VLAN mapping


Maximum data transfer rate (2．4 GHz)

300 Mbit/s


6 GHz

No


Wi-Fi Multimedia (WMM)/(WME)

Yes


Wireless isolation

Yes


Maximum data transfer rate

300 Mbit/s


Transmitting power (CE)
dBm


Transmitting power (FCC)

22 dBm


5 GHz

No


Frequency band

2.4 GHz


Quality of Service (QoS) support

Yes


VLAN support

Yes


Rate limiting

Yes


2．4 GHz

Yes


Ethernet LAN data rates
,100 Mbit/s



Operational conditions


Operating temperature (T-T)

-30 - 65 °C


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 °C



Performance


Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10



Power


Power over Ethernet (PoE) type supported

Passive PoE


Output voltage

24 V


Power over Ethernet (PoE)

Yes


Output current

0.6 A


Power consumption (max)

3.12 W



Antenna


Antenna features

Detachable antenna


Antenna type

External


Antennas quantity

2


Antenna gain level (max)

3 dBi


Antenna direction type

Omni-directional



Packaging data


Package height
0 mm


Package depth

270 mm


Package width
0 mm


Package type

Box


Package weight

620 g
