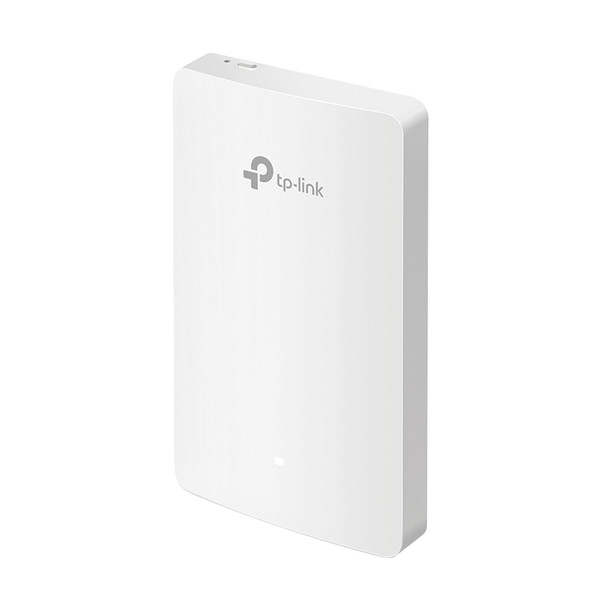

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point 1167 Mbit/ EAP235-WALL

Dedicated Complete, Private Wi-Fi Network in Each Room
An EAP in each room allows guests to enjoy their own private Wi-Fi network that's fast, delivering a strong signal, and providing corner to corner coverage.

MU-MIMO + Dual-Band: Connect Faster and More
802.11ac wave 2 MU-MIMO technology enables multiple users to access the Internet simultaneously, which largely boosts up your network speed of up to 1,200 Mbps. Capable of transmitting in both 2.4 GHz and 5 GHz wireless band, it provides greater compatibility to connect varieties of devices.

Absolute Thinnest, Inconspicuous Design
The thinnest wall plate AP available-only 15 mm-featuring a sleek, minimalist appearance. Designed to blend in with the d�cor of hotel rooms, hospitals, offices and school dormitories, to deliver powerful Wi-Fi without clashing with the room.

Effortless Deployment with PoE Powered
With 802.3af/802.3at Power over Ethernet supported there's no need to install additional wiring in the building. Simply plug in existing Ethernet cables and you're ready to go.

Quick, Simplified Installation
EAP235-Wall is easy to install, so extra cost, time, or professional knowledge are completely unnecessary.

Full Gigabit Ports to Bridge Network
Equipped with four Gigabit data ports (1 uplink + 3 downlink), one downlink port offering PoE pass-through, to connect multiple devices to your gigabit network. Wired devices like VoIP phones can be powered with no need for extra electrical cables.

Cloud Centralized Management Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App
Follow configuration instructions on the Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Features


Elegant Appearance: 15 mm ultra slimmest and conspicuous design blends into hotel rooms, hospital, offices, dormitories and any other environments


Easy Installation and PoE-enabled: Easy-mount construction allows effortless installation into standard EU/US wall junction box and PoE compatibility helps for flexible deployment


Interface: 4 Gigabit Ethernet ports for bridging (1*uplink + 3*downlink), with one downlink port supporting PoE pass-through to provide power for wired device


High Capacity: Dual-Band 802.11ac Wave 2 with 2x2 MU-MIMO provides wireless speeds of up to 1,200 Mbps and great compatibility to connect varieties of devices


Cloud management and Omada app supported for ultra-convenience and easy management


Enterprise class Wi-Fi security helps to decrease network security threats


Secure guest network along with Facebook Wi-Fi/SMS authentication options and wireless security technology



Protocols


Universal Plug and Play (UPnP)

Yes



Security


Access Control List (ACL)

Yes


Security algorithms

64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK


Remote Authentication Dial-In User Service (RADIUS)

Yes


MAC address filtering

Yes


Number of SSID supported

16


Service Set Identifier (SSID) features

Multiple SSIDs



Ports & interfaces


WAN connection

Ethernet (RJ-45)


Ethernet LAN (RJ-45) ports

4



Management features


Web-based management

Yes


Syslog

Yes



Design


Cable lock slot

Yes


Reset button

Yes


Placement

Wall


Product colour

White


LED indicators

LAN, Power, Status, WAN, WLAN



Weight & dimensions


Height

20 mm


Width

143 mm


Depth

86 mm



Packaging content


Number of products included

1 pc(s)


Quick start guide

Yes


Mounting kit

Yes



Logistics data


Harmonized System (HS) code

85176990



Sustainability


Sustainability compliance

Yes


Sustainability certificates

CE, Federal Communications Commission (FCC), RoHS



Features


Automatic channel selection

Yes


Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at


Virtual LAN features

Port-based VLAN, VLAN mapping


Maximum data transfer rate (2?4 GHz)

300 Mbit/s


6 GHz

No


Wi-Fi Multimedia (WMM)/(WME)

Yes


Wireless isolation

Yes


Maximum data transfer rate

1167 Mbit/s


Automatic channel scanning

Yes


Band steering

Yes


MIMO type

Multi User MIMO


Transmitting power (CE)

20 - 23 dBm


Transmitting power (FCC)

21 dBm


5 GHz

Yes


Frequency band

2.4 - 5 GHz


Maximum data transfer rate (5 GHz)

867 Mbit/s


Quality of Service (QoS) support

Yes


VLAN support

Yes


MIMO

Yes


BeamForming

Yes


Cabling technology

10/100/1000Base-T(X)


Rate limiting

Yes


2?4 GHz

Yes


Ethernet LAN data rates

10,100,1000 Mbit/s



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

10 - 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 �C



Performance


Compatible operating systems

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10



Power


Power over Ethernet (PoE) type supported

Active PoE, Passive PoE


Power consumption (typical)

24.4 W


Power over Ethernet (PoE)

Yes



Antenna


Antenna features

Integrated antenna


Antenna type

Internal


Antennas quantity

2


Antenna gain level (max)

4 dBi



Packaging data


Package height

33 mm


Package depth

184 mm


Package width

117 mm


Package type

Box


Package weight

300 g
