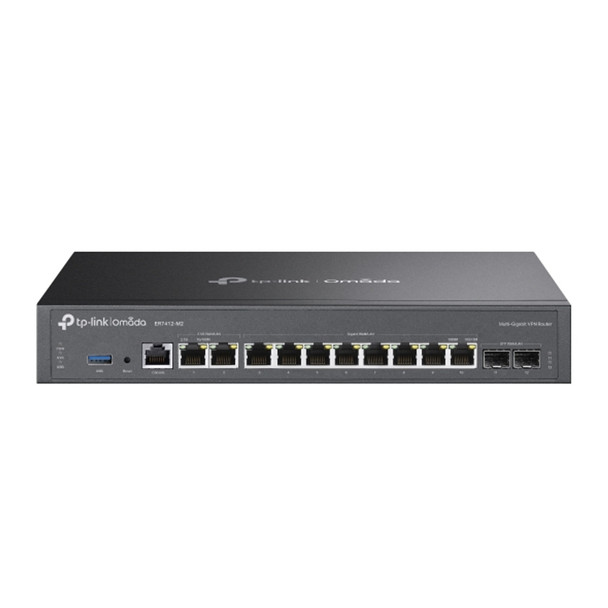

TP-Link Omada Multi-Gigabit VPN Router Ethernet WAN 2.5 Gigabit Ethernet Gigabit ER7412-M2

Omada Multi-Gigabit VPN Router

- 2 2.5Gbps WAN/LAN RJ45 Ports
- 10 Gigabit WAN/LAN Ports (2 SFP, 8 RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS

Engineered for Dense Environments, Powered by
Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.

Up to 11 WAN Ports & One USB WAN for Mobile Broadband

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.

Abundant Security Features

DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).

IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.

DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.

Features


Quad-core @2.0GHz CPU


2 2.5G RJ45 WAN/LAN ports

Gigabit WAN/LAN Ports (2 SFP, 8 RJ45)


1 USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)


Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband


High-security SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN


Centralized cloud management via the web or the Omada app*


DoS/DDoS protection, IP/MAC/URL filtering, DPI, and IPS/IDS for enhanced security



Protocols


DHCP server

Yes


DMZ support

Yes



WAN connection


SIM card slot

No


DSL WAN

No


3G/4G USB modem compatibility

Yes


Ethernet WAN

Yes


SFP WAN

Yes



Certificates


Compliance certificates

CE, Federal Communications Commission (FCC)



Ports & interfaces


USB ports quantity

1


WAN/Ethernet LAN ports quantity

2


Number of console ports

1


Ethernet LAN (RJ-45) ports

7


SFP module slots quantity

2



Security


Access Control List (ACL)

Yes


Security algorithms
8-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1, SHA-2, SHA-384, SHA-512


DoS attack prevention

Yes


ARP attack prevention

Yes


VPN tunnels quantity

80


URL filtering

Yes


ICMP attack prevention

Yes


Network address translation (NAT)

Yes



Management features


Web-based management

Yes


Reset button

Yes


Universal Plug and Play (UPnP)

Yes



Design


Product colour

Black


Rack mounting

Yes



Weight & dimensions


Height

44 mm


Width

294 mm


Depth
0 mm



Packaging content


Cables included

AC, LAN (RJ-45)


Quick start guide

Yes



Network


Networking standards

IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


VLAN support

Yes


Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet


Static route

Yes


Ethernet LAN data rates
,100,1000,2500 Mbit/s



Features


Internal memory type

DDR4


Windows operating systems supported

Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP


Internal memory
24 MB


Flash memory
8 MB


Mac operating systems supported

Yes


Linux operating systems supported

Yes



Operational conditions


Operating temperature (T-T)

0 - 45 C


Operating relative humidity (H-H)
- 90


Storage relative humidity (H-H)

5 - 90


Storage temperature (T-T)

-40 - 70 C



Power


AC input voltage
0 - 240 V


AC input frequency

50/60 Hz


Power consumption (max)
.5 W
