Tp-Link

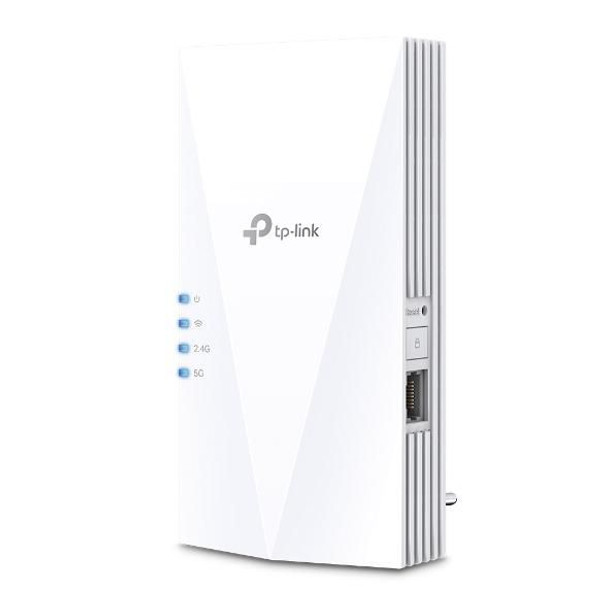

TP-Link RE500X Ax1500 Wi-Fi Range Extender RE500X
- UPC:
- 6935364010324
- MPN:
- RE500X
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Eliminate Dead Zones with Powerful WiFi
AX1500 WiFi 6 Range Extender
Life in the fast lane with advanced WiFi6
WiFi 6 comes with it all: faster speeds, lower latency, and more connections. It also features 25% faster data throughput compared with last-gen WiFi thanks to 1024-QAM. With this speed boost, experience high-speed and stable WiFi throughout your rooms.
4 high-performance amplifiers, we got you covered
Enjoy 4K streaming and gaming in whatever room you�re in thanks to RE500X�s 4 high-performance amplifiers. Whether you�re sharing a pad with friends or living in your forever home, RE500X sends out strong signals to those hard-to-cover areas.
Tri-Core 1.5 GHz CPU
Many full-blown routers only have dual-core and below
OneMesh�
Roaming Redefined
Stop searching around for full bars. OneMesh� is a simple way to form a Mesh network with a single WiFi name for seamless whole-home coverage. Just connect RE500X to an OneMesh� router.
Wide.
Wider.
Widest.
Keep your internet focused on a single room or blanket an entire floor with WiFi by picking between 3 strength levels on the Tether app.
OFDMA
More efficient data.
Orthogonal Frequency Division Multiple Access helps integrate the data of different end devices for higher efficiency.
Beamforming
Strong, targeted WiFi.
Find the direction of your phone or laptop, and accelerate your signal strength.
DIY WiFi
Every home is different. That�s why our AX range extender provides you with a flexible array of options to custom create your own high-speed WiFi.
Built-In
Access Point Mode
RE500X is more than a wireless range extender. Simply plug an Ethernet cable into its Ethernet port, and easily turn your wired internet connection into a 2�2 MU-MIMO dual band wireless access point.
Control at Your Fingertips
Set up and manage your WiFi through the TP-Link Tether app from your phone (Android, iOS), including TP-Link routers and range extenders.
Antenna
Antenna type
Internal
Antennas quantity
2
Transmitting power (CE)
2.4 GHz ?20dBm, 5 GHz ?30dBm dBm
Design
Certification
FCC, RoHS
LED indicators
Y, Yes
Product colour
White
Quantity per pack
1 pc(s)
Reset button
Yes
Logistics data
Harmonized System (HS) code
85176990
Network
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK
Wi-Fi
Yes
Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Wi-Fi data rate (max)
1200 Mbit/s
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Operational conditions
Operating relative humidity (H-H)
10 - 90 %
Operating temperature (T-T)
0 - 40 �C
Storage relative humidity (H-H)
5 - 90 %
Storage temperature (T-T)
-40 - 70 �C
Package dimensions
Depth (package,cm)
12.5 cm
Gross Weight (Package, kg)
0.52 kg
Height (package,cm)
9.7 cm
Width (package,cm)
20.2 cm
Packaging content
Quick start guide
Yes
Performance
BeamForming
Yes
Browser supported
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
Data transfer rate
1200 Mbit/s
Ethernet LAN data rates
1000
Linux operating systems supported
Y, Yes
Mac compatibility
Yes
Mac operating systems supported
Yes
Type
Network transmitter & receiver
Windows operating systems supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
WPS push button
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Power
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (max)
10 Watt
Power consumption (typical)
10 Watt
Product dimensions
Net Weight (Product, kg)
0.4 kg
Product Depth
3.6 cm
Product Height
14.9 cm
Product Width
7.8 cm
Technical details
Sustainability certificates
CE, RoHS
Vendor information
Brand Name
TP-Link
Warranty
1 Year(s)
