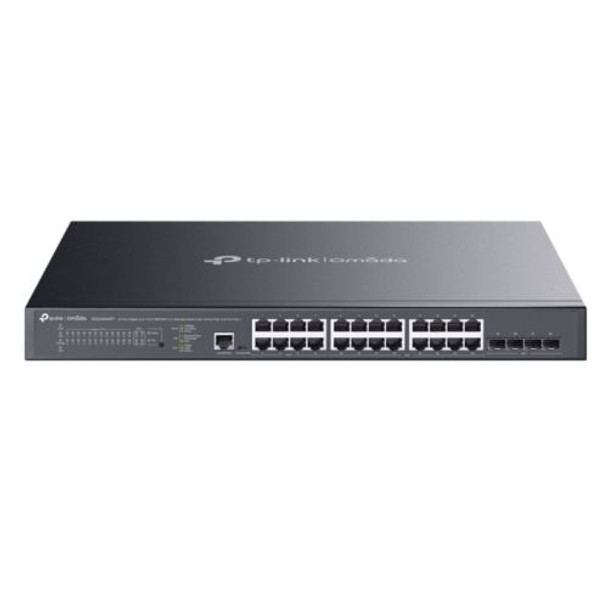

Tp-Link SG3428XMPP Omada 24-Port Gigabit And 4-Port 10Ge Sfp+ L2+ Managed Switch SG3428XMPP

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

4x 10 Gbps SFP+ slots
8x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
16x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
500 W total PoE budget*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design





Empowering the High-Power Devices with Gigabit PoE++ Ports

8x Gigabit PoE++ RJ45 Ports
16x Gigabit PoE+ RJ45 Ports
Budget Up to 90W per PoE++ Port
Total 500W PoE Power



Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.


Multiple Application Scenarios

Surveillance - Works with IP Cameras
Conference Call - Works with IP Phones
Wi-Fi Coverage - Works with Access Points
Wired Connections - Works with Non-PoE Devices such as PCs and Printers

DescriptionSpecification

Rackmountable: Yes
Managed: Yes
Number of Ports: 24
Max RJ45 Transfer Rate: 10/100/1000 Mbps
#Hide#Max SFP Transfer Rate: 10G SFP
Interface(s): "24 x 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
4 10G SFP+ Slots
1 x RJ45 Console Port
1 x Micro-USB Console Port"
PoE Ports (RJ45): Standard: 802.3at/af/bt compliant
PoE++ Ports: Ports 1
8 (up to 90 W PoE Output per Port)
PoE+ Ports: Ports 9
24 (up to 30 W PoE Output per Port)
Power Budget: 500 W
Switching Capacity: 128 Gbps
Power Supply: 100-240 V AC
50/60 Hz
Max Power Consumption: 605.5W (110V/60Hz) ( with 500W PD connected)
Dimensions: (WxDxH) 440 x 330 x 44 mm
Mac Address Table: 16 K
Packet Forwarding Rate: 95.23 Mpps
Jumbo Frame: 9 KB
Advanced Functions: Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule

ISP Features:
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
PPPoE ID Insertion
ERPS
802.3ah Ethernet Link OAM
DDM
sFlow
Quality of Service: "8 priority queues
802.1p CoS/DSCP priority
Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Bandwidth Control: Port/Flow-based Rating Limiting
Smoother Performance
Action for Flows: QoS remark (802.1P Remark, DSCP Remark)"
Layer Features: "L2 and L2+:8 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 48 IPv4/IPv6 Static Routes
Static ARP: 128 static entries
512 ARP Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
DHCP L2 Relay
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring

"
.: "L2 Multicast:
Supports 1000 (IPv4, IPv6) IGMP groups
IGMP Snooping
IGMP Authentication
Multicast VLAN Registration (MVR)
MLD Snooping
Multicast Filtering: 256 profiles and 16 entries per profile"
VLAN: "VLAN Group: Max 4K VLAN Groups
802.1q Tagged VLAN
MAC VLAN: 30 Entries
Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Private VLAN
GVRP
VLAN VPN: VLAN Mapping, VLAN Replace
Voice VLAN"
Access Control: "Time-based ACL
MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
Combined ACL
Packet Content ACL
IPv6 ACL
Policy: Mirroring, Redirect, Rate Limit, QoS Remark
ACL applies to Port/VLAN"
Security: IP-MAC-Port Binding
IPv6-MAC-Port Binding
DoS Defend
DHCP Filter
Static/Dynamic Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
802.1X
AAA (including TACACS+)
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
CLI management with SSHv1/SSHv2
IP/Port/MAC-based access control
Management: "Require Omada Controllers:
Omada App
Centralized Management
Cloud Access
Zero-Touch Provisioning

Management Features:
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3 SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP AutoInstall
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
Password Recovery
SNTP
System Log"
Environment: Operating Temperature: 0–40°C (32–104°F)
Storage Temperature: -40–70°C (-40–158°F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: SG3428XMPP Switch
Power Cord
Quick Installation Guide
Rackmount Kit
Rubber Feet
Package Type: Retail
Package Weight: 6.2000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes
