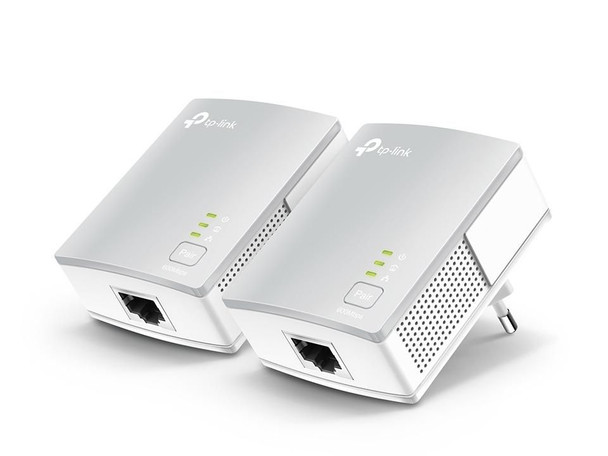

TP-Link TL-PA4010 KIT Tl-Pa4010Kit 600 Mbit/S TL-PA4010 KIT

600Mbps Powerline Speeds Ideal for HD Streaming

Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.

Miniature Design

With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link�s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.

Pair Button for Easy Network Security

Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.

It's that simple!

1. Plug the adapter into the power outlet

2. Connect the device via the network cable to the adapter

3. Press the pair buttons�and you're done!

Design



Certification



CE, FCC


LED indicators



Y, Yes


Product colour



White


Logistics data



Harmonized System (HS) code



85171800


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.49 kg


Packaging content



Cables included



LAN (RJ-45)


Quantity per pack



2 pc(s)


Quick installation guide



Yes


Performance



Built-in power socket



No


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Encryption button



Yes


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100


Ethernet LAN interface type



Fast Ethernet


Maximum data transfer rate



600 Mbit/s


Maximum operating distance



300 m


Modulation



OFDM


Networking standards



IEEE 802.3, IEEE 802.3u


Plug and Play



Yes


PowerLine standard



HomePlug AV


Security algorithms



128-bit AES


Wi-Fi



No


Power



Power consumption (standby)



0.88 Watt


Power consumption (typical)



4.26 Watt


Product dimensions



Net Weight (Product, kg)



0.38 kg


Product Depth



5.2 cm


Product Height



2.85 cm


Product Width



6.5 cm


System requirements



Linux operating systems supported



Yes


Mac compatibility



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Y, Yes


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
