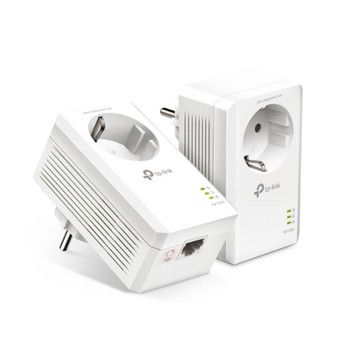

TP-Link TL-PA7017PKIT Av1000 Gigabit Passthrough TL-PA7017PKIT

Gigabit Network Goes Further
with AV1000 Powerline
HomePlug AV2
AV1000 Gigabit Passthrough Powerline Starter Kit
TL-PA7017P KIT

1000 Mbps!
Perfect for Bandwidth-Hungry Activities
Coming with advanced HomePlug AV2 technology, TL-PA7017P KIT provides users with high-speed data transfer rates of up to 1000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming, online gaming, and large file transfers.

Gigabit Port for
Ultra-Fast Data Transfer
With one Gigabit Ethernet port, TL-PA7017P KIT allows users to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth streaming for Ultra HD videos. This makes the TL-PA7017P KIT the perfect home entertainment companion.

Plug and Play, No Configuration Required
Connect a powerline adapter to the router. Plug another powerline adapter into a wall socket in another room. Connect it to your internet enabled device via Ethernet—and you’re done!

Extra Power Outlet for Additional Devices
Finding it hard to plug in your devices? The TL-PA7017P KIT has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste.

Up to 85% Power Saved
The future’s looking green for powerline adapters. TL-PA7017P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%

Design



Certification



CE


LED indicators



LAN, PLC, Power


Product colour



White


Logistics data



Harmonized System (HS) code



85171800


Operational conditions



Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 °C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 °C


Package dimensions



Depth (package,cm)



13.6 cm


Gross Weight (Package, kg)



0.59 kg


Height (package,cm)



10 cm


Width (package,cm)



19 cm


Packaging content



Cables included



LAN (RJ-45)


Quantity per pack



2 pc(s)


Quick installation guide



Yes


Performance



Built-in power socket



Yes


Encryption button



Yes


Ethernet LAN



Yes


Ethernet LAN (RJ-45) ports



1


Ethernet LAN data rates



10, 100, 1000


Ethernet LAN interface type



Gigabit Ethernet


Maximum data transfer rate



1000 Mbit/s


Maximum operating distance



300 m


Modulation



OFDM


Networking standards



IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u


Plug and Play



Yes


Power plug



Type E / F


PowerLine standard



HomePlug AV2


Security algorithms



128-bit AES


Wi-Fi



No


Power



Power consumption (standby)



0.5 Watt


Power consumption (typical)



2.3 Watt


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Depth



4.2 cm


Product Height



9.5 cm


Product Width



5.8 cm


System requirements



Linux operating systems supported



Yes


Mac compatibility



Yes


Mac operating systems supported



Y, Yes


Windows operating systems supported



Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
