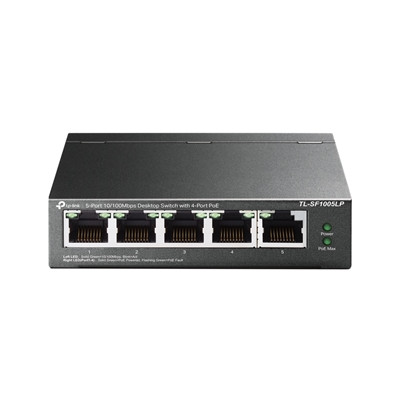

Tp-Link Tl-Sf1005lp 5-Port 10/100 Mbps Desktop Switch With 4-Port Poe Switch TL-SF1005P
(No reviews yet)
Write a Review
- UPC:
- 6935364083205
- MPN:
- TL-SF1005P
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance, Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m, perfect for IP Camera deployment in large areas.
Specifications
HARDWARE FEATURES
Interface
5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network MediaBASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)0BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate
0.744 Mpps
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
6.48 BTU/h(no PD connected)0.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1005LP
Power Adapter
Installation Guide
Environment
Operating Temperature: 0–40 (32–104)
Storage Temperature: -40–70 (-40–158)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
View AllClose
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance, Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m, perfect for IP Camera deployment in large areas.
Specifications
HARDWARE FEATURES
Interface
5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network MediaBASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)0BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate
0.744 Mpps
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
6.48 BTU/h(no PD connected)0.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1005LP
Power Adapter
Installation Guide
Environment
Operating Temperature: 0–40 (32–104)
Storage Temperature: -40–70 (-40–158)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
