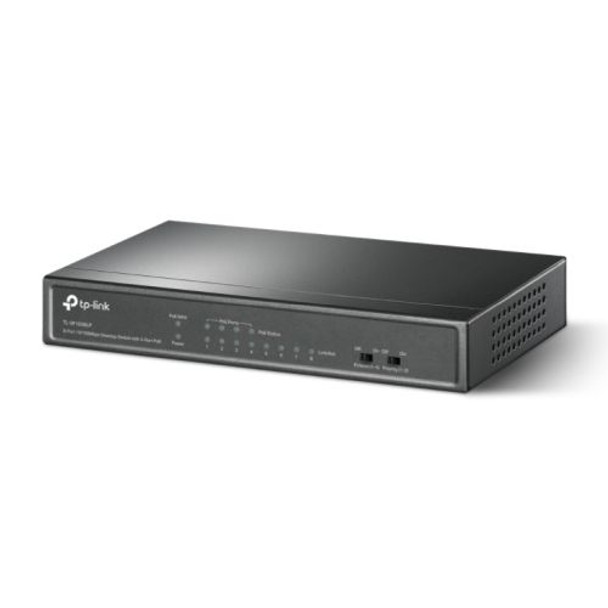

Tp-Link TL-SF1008LP 8-Port 10/100Mbps Unmanaged Desktop Switch 4-Port Poe L TL-SF1008LP

8-Port 10/100Mbps Desktop Switch with 4-Port PoE

8x 10/100 Mbps RJ45 ports
4x PoE ports transfer data and power on individual cables
Works with IEEE 802.3af compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 41 W for all PoE ports*
Plug and play with no configuration required



Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance - Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** - perfect for IP Camera deployment in large areas.
Priority Video - Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.   *PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

DescriptionSpecification

Rackmountable: No
Management: No
Number of Ports: 8
Data Transfer Rate: 10/100 Mbps
Interface(s): 8 x 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Ports 1–4
Power Supply: 41 W
Bandwidth: 1.6 Gbps
Power Supply: External Power Adapter (Output: 53.5 V DC / 0.81 A)
Dimensions: (WxDxH) 171 x 98 x 27 mm
Transfer Method: Store-And-Forward
Mac Address Table: 2K
Advanced Functions: Compatible With IEEE 802.3af Compliant PDs
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode
Security: Physical Security Lock
Management: -
Environment: Operating Temperature: 0–40C (32–104F)
Storage Temperature: -40–70C (-40–158F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Package Contents: TL-SF1008LP
Power Adapter
Installation Guide
Package Type: Retail
Package Weight: 0.9500 kg
Warranty: Lifetime Warranty
#Hide#POE: Yes
