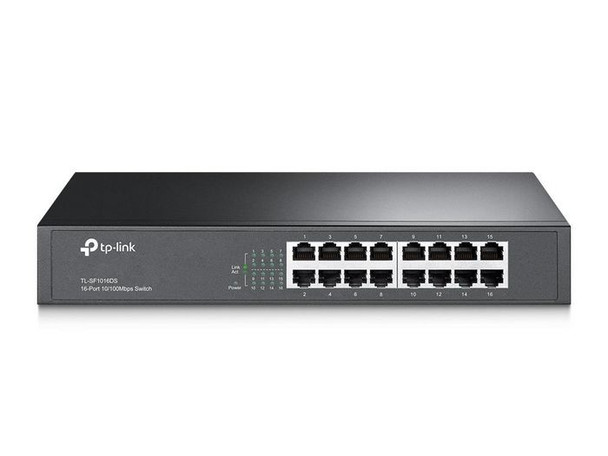

TP-Link TL-SF1016DS Network Switch Unmanaged Fast TL-SF1016DS

What This Product Does
The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016DS can save on power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 16-Port 10/100Mbps Desktop/Rackmount Switch TL-SF1016DS features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1016DS forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016DS work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.

Data transmission



MAC address table



8000 entries


Packet buffer memory



2 MB


Store-and-forward



Yes


Switching capacity



3.2 Gbit/s


Throughput



2.38 Mpps


Design



Certification



FCC, RoHS


Form factor



1U


Housing material



Metal


Product colour



Black


Rack mounting



Yes


Redundant fans support



Yes


Stackable



No


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Cable types supported



Cat3, Cat4, Cat5, Cat5e


Copper ethernet cabling technology



10BASE-T, 100BASE-T


Ethernet LAN data rates



10, 100


Flow control support



Yes


Networking standards



IEEE 802.3i, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



7.03 BTU/h


Operating relative humidity (H-H)



10 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



40 cm


Gross Weight (Package, kg)



2.65 kg


Height (package,cm)



8 cm


Width (package,cm)



25 cm


Packaging data



Cables included



AC


Rack mount kit



Yes


Rubber feet



Yes


User guide



Yes


Performance



Fanless



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Fast Ethernet (copper) ports quantity



16


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Power consumption (max)



2.06 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



2.04 kg


Product Depth



18 cm


Product Height



4.4 cm


Product Width



29.4 cm


Protocols



Supported network protocols



TCP/IP


Security



Static port security



Yes


Sustainability



Sustainability certificates



CE, Federal Communications Commission (FCC), RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


TP-Link


Warranty



1 Year(s)
