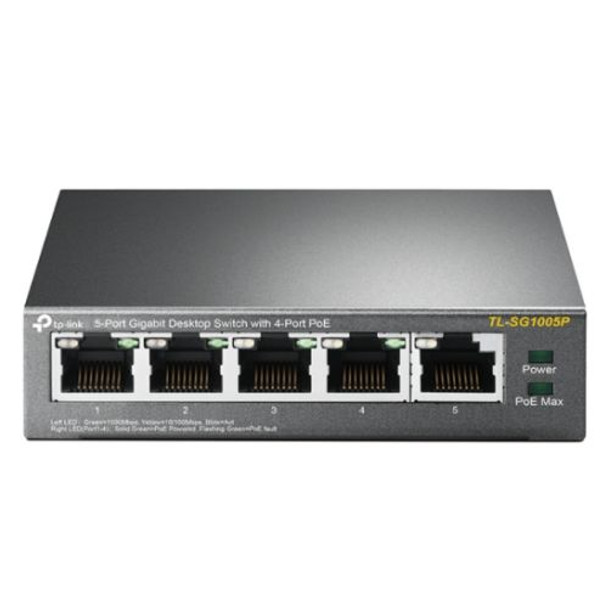

Tp-Link TL-SG1005P 5-Port Gigabit Unmanaged Desktop Switch 4 Port Poe Ste TL-SG1005P

5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Requires no configuration and installation



What This Product Does

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.




Power over Ethernet

4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).




Overload Arrangement

TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.




Port Priority Function

Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.




Easy To Use

TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.

Specification

Rackmountable: No
Management: No
Number of Ports: 5
Data Transfer Rate: 10/100/1000 Mbps
Jumbo Frame:
Interface(s): 5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
PoE Ports (RJ45): Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Bandwidth: 10Gbps
Standards and Protocols:
Switching Capacity:
LED:
Power Supply: External Power Adapter (Output: 48VDC / 1.25A)
Dimensions: 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Transfer Method: Store-And-Forward
Mac Address Table: 2K
Port Forwarding:
Packet Forwarding Rate:
Advanced Functions: Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Quality of Service:
Layer Features:
VLAN:
Access Control:
Security:
Management:
.:
Environment (℃): Operating Temperature: 0C
40C (32F
104F)
Storage Temperature: -40C
70C (-40F
158F)
Operating Humidity: 10%
90% non-condensing
Storage Humidity: 5%
90% non-condensing
Package Contents: TL-SG1005P
Power Adapter
Installation Guide
Package Type: Retail
Package Weight: 0.8000 kg
Warranty: Limited Lifetime
#Hide#POE: Yes
